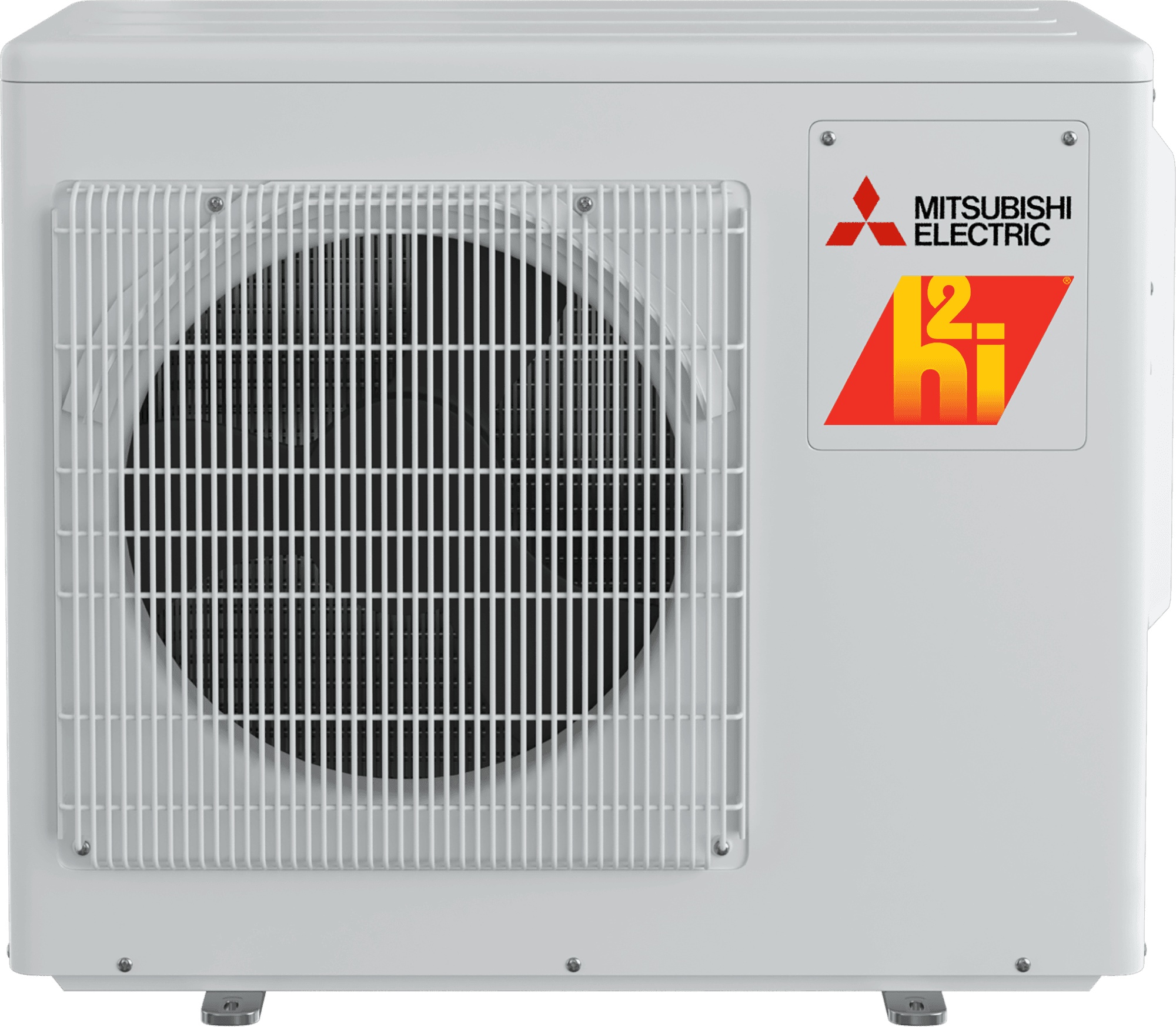

Mitsubishi Electric Trane® MXZ-3D24NLHZ M-Series 2.0 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 3 Zones, 208/230V, 1 Phase, 14.4-20.0 Seer2, 8.0-10.0 Hspf2
Mitsubishi Electric Trane® MXZ-3D24NLHZ M-Series 2.0 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 3 Zones, 208/230V, 1 Phase, 14.4-20.0 Seer2, 8.0-10.0 Hspf2
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 441730
MPN: MXZ-3D24NLHZ
CPN:
| BTU Cooling Rating (Custom) | : | 24,000 BTU/h |
| BTU Cooling Rating | : | 22,000 BTU/h |
| BTU Heating Rating (Custom) | : | 24,000 BTU/h |
| BTU Heating Rating | : | 25,000 BTU/h |
| Compressor Type | : | Rotary |
| Depth | : | 13 in |
| EER (Custom) | : | 13.0 |
| EER2 (Custom) | : | 10.0~11.0~12.0~13.0 |
| EER2 | : | 10.0-13.0 |
| EER | : | 13.0 |
| ENERGY STAR Certified | : | Yes |
| HSPF (Custom) | : | 10.0 |
| HSPF2 (Custom) | : | 8.0~9.0~10.0 |
| HSPF2 | : | 8.0-10.0 |
| HSPF | : | 10.0 |
| Height | : | 31.344 in |
| Liquid Line Size | : | 1/4 in |
| Model Number | : | MXZ |
| Number of Stages | : | Inverter |
| Number of Zones | : | 3 |
| Packaged Depth | : | 17.313 in |
| Packaged Height | : | 38.969 in |
| Packaged Width | : | 41.344 in |
| Phase | : | 1 ph |
| Product Family | : | M-Series |
| Product Type | : | Heat Pump |
| Product Weight | : | 152 lbs |
| Refrigerant Type | : | R-454B |
| SEER (Custom) | : | 20.0 |
| SEER2 (Custom) | : | 14.0~15.0~16.0~17.0~18.0~19.0~20.0 |
| SEER2 | : | 14.4-20.0 |
| SEER | : | 20.0 |
| Shipping Weight | : | 178 lbs |
| Sound Level | : | 58 dB(A) |
| Suction Line Size | : | 1/2~3/8 in |
| Tonnage (Custom) | : | 2.0 Ton |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 37.406 in |
