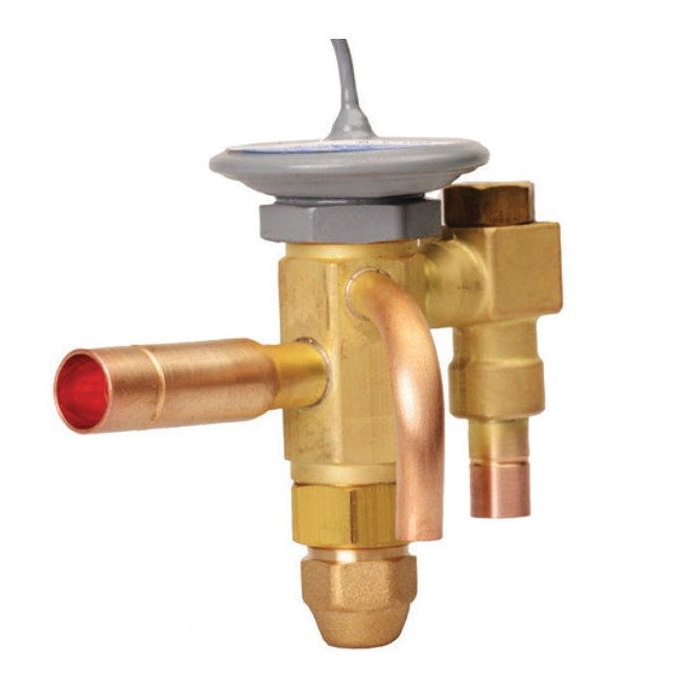

Sporlan® 108619 Thermostatic Expansion Valve, R-402A, R-404A, R-507A, R-452A Refrigerant, 3/8 in Inlet, ODF Inlet
Sporlan® 108619 Thermostatic Expansion Valve, R-402A, R-404A, R-507A, R-452A Refrigerant, 3/8 in Inlet, ODF Inlet
| Body Material | : | Brass |
| Capillary Length | : | 30 in |
| Compatible Unit Tonnage | : | 1/2 to 1 ton |
| Function Type | : | Expansion Valve |
| Height | : | 4.19 in |
| Inlet Connection Size | : | 3/8 in |
| Inlet Connection Type | : | ODF |
| Maximum Working Pressure | : | 50 to 105 psig |
| Operating Temperature Rating | : | 250 deg F |
| Outlet Connection Size | : | 1/2 in |
| Outlet Connection Type | : | ODF |
| Refrigerant Type | : | R-402A, R-404A, R-507A, R-452A |
Sporlan Types EBF and SBF are small brass bar body valves with Extended ODF solder connections and the same balanced port construction as the Type BF valve. Both valves have replaceable thermostatic elements. The Type EBF has a 100 mesh insert strainer. The Type SBF has a 100 mesh removable strainer that can be cleaned and/or replaced while the valve is still soldered to the system tubing. The balanced port construction makes these valves ideally suited for small capacity refrigeration applications which operate over widely varying conditions.
Sporlan® Thermostatic Expansion Valve, R-402A, R-404A, R-507A, R-452A Refrigerant, Compatible Unit Tonnage 1/2 to 1 ton, 3/8 in Inlet, ODF Inlet, 1/2 in Outlet, ODF Outlet, Brass Body, 30 in L Capillary, 50 to 105 psig Max Working Pressure, 250 deg F, 4.19 in H, Expansion Valve
