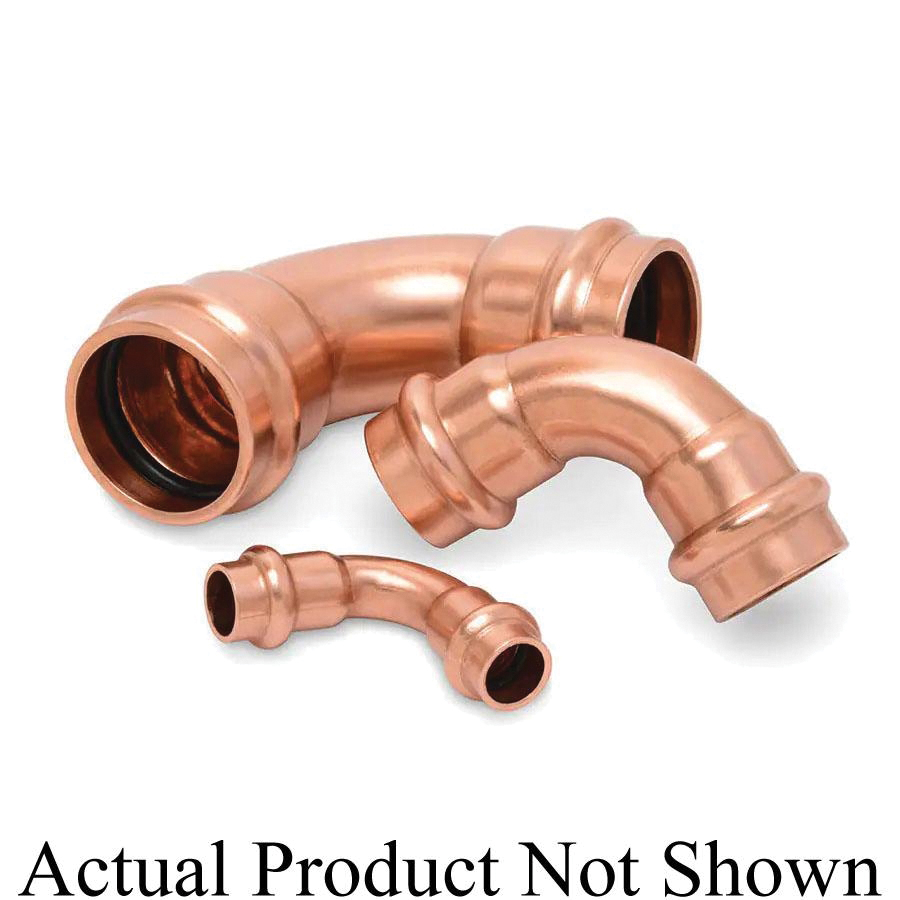

ZoomLock® 870600 90 deg Elbow, 1/4 in, Press-to-Connect, 90 deg, 700 psi Max Working Pressure, Elbow, 1/4 in, Copper
ZoomLock® 870600 90 deg Elbow, 1/4 in, Press-to-Connect, 90 deg, 700 psi Max Working Pressure, Elbow, 1/4 in, Copper
| ASTM Specifications | : | Yes |
| Angle | : | 90 deg |
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type 1 | : | Press-to-Connect |
| Connection Type 2 | : | Press-to-Connect |
| Fitting Type | : | Elbow |
| For Use With | : | 1/4 to 1-1/8 in Pipes |
| Function Type | : | Elbow |
| Material Grade | : | ASTM UNS C12200 |
| Material | : | Copper |
| Maximum Working Pressure | : | 700 psi |
| Operating Temperature Rating | : | -40 to 250 deg F |
| Package Quantity | : | 5 Bag |
| Reducing | : | No |
| Refrigerant Type | : | R-32, R-125, R-134A, R-290, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-427A, R-438A, R-444A, R-447A, R-447B, R-448A, R-449A, R-450A, R-452A, R-452B, R-452C, R-454A, R-454B, R-454C, R-457A, R-459A, R-507A, R-513B, R-600A, R-718, R-1234yf, R-1234ZE, HYCOOL 20 |
Parker ZoomLock MAX refrigerant press fittings allow the contractor to successfully make leak-free connections with a press fitting system without the use of a brazing torch. ZoomLock MAX refrigerant press fittings reduce installation costs, is more repeatable than brazing, improves system cleanliness, and creates secure leak-free copper tube connections. ZoomLock MAX refrigerant press fittings have a 15-year warranty and no crimp gauge needed to provide a safe secure connection. To find a ZoomLock MAX distributor visit https://discover.parker.com/ZoomLockMAXdistributors.
ZoomLock® 90 deg Elbow, 1/4 in Connection Size 1, Connection Type 1: Press-to-Connect, 90 deg Angle, 700 psi Maximum Working Pressure, Elbow Fitting, 1/4 in Connection Size 2, Connection Type 2: Press-to-Connect, Copper, ASTM UNS C12200 Material Grade, R-32, R-125, R-134A, R-290, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-427A, R-438A, R-444A, R-447A, R-447B, R-448A, R-449A, R-450A, R-452A, R-452B, R-452C, R-454A, R-454B, R-454C, R-457A, R-459A, R-507A, R-513B, R-600A, R-718, R-1234yf, R-1234ZE, HYCOOL 20 Refrigerant, For Use With: 1/4 to 1-1/8 in Pipes, Elbow Function Type, Reducing: No, ASTM Specifications: Yes, -40 to 250 deg F Operating Temperature
- Less equipment and no gas needed
- Safer conditions, no fire hazards
- No hot work permits required
- More environmentally friendly
- No solder related quality issues
- More flexible access to job sites
- No need to nitrogen purge
