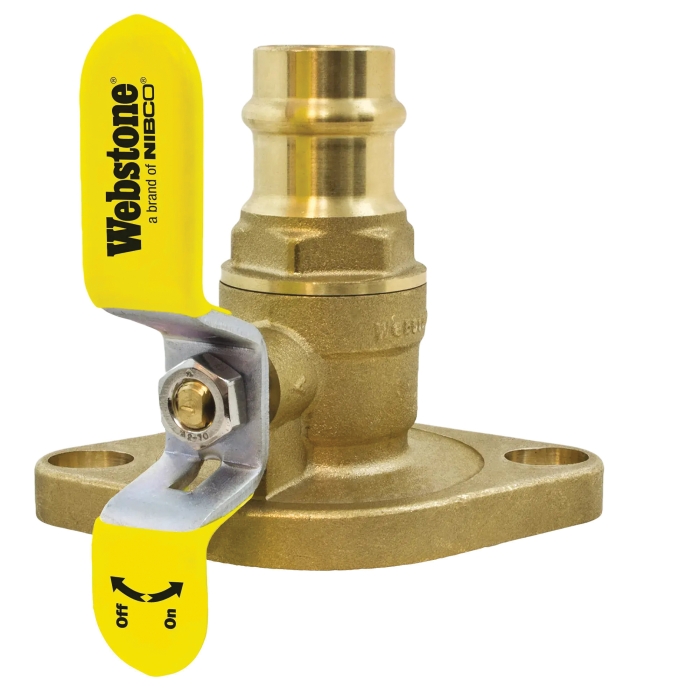

Webstone H-41403 Isolator With Rotating Flange, Ball Valve, 3/4 in Nominal, Connection Size 1: 3/4 in, Brass Body
Webstone H-41403 Isolator With Rotating Flange, Ball Valve, 3/4 in Nominal, Connection Size 1: 3/4 in, Brass Body
Manufacturer: NIBCO Inc
Brand: Webstone
Part #: 364025
MPN: H-41403
CPN:
| Body Material | : | Brass |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | IPS |
| Connection Type 2 | : | IPS |
| Maximum Working Pressure | : | 600 psi |
| NSF Specifications | : | Yes |
| Nominal Size | : | 3/4 in |
| Operating Temperature Rating | : | 100 deg F |
| Port Type | : | Full |
| Product Family | : | 4140 Series |
| Seal Material | : | PTFE |
| Top to Inlet Center | : | 2-13/16 in |
| Valve Type | : | Ball |
Webstone Isolator, Ball Valve, 3/4 in Nominal, Connection Size 1: 3/4 in, Connection Type 1: IPS, Connection Size 2: 3/4 in, Connection Type 2: IPS, Brass Body, PTFE Seal, Full Port, 600 psi Maximum Working Pressure, 100 deg F, Yes, 4140 Series, 2-13/16 in Top to Inlet Center
- Easily Isolates the Pump for Replacement
- Prevents Electrolysis and Eliminates Galvanic Corrosion
- Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
- Flange Features a Conical Inlet to Minimize Turbulence
- Fits Virtually Any Standard Circulator Pump
- Saves 18 Minutes
- Replaces 3 Components
- Eliminates 2 Leak Paths
- This valve is actuated by a blowout proof stem
- Adjustable Packing Gland
- Certified to NSF/ANSI/CAN 61 & 372
- NSF/ANSI 14
