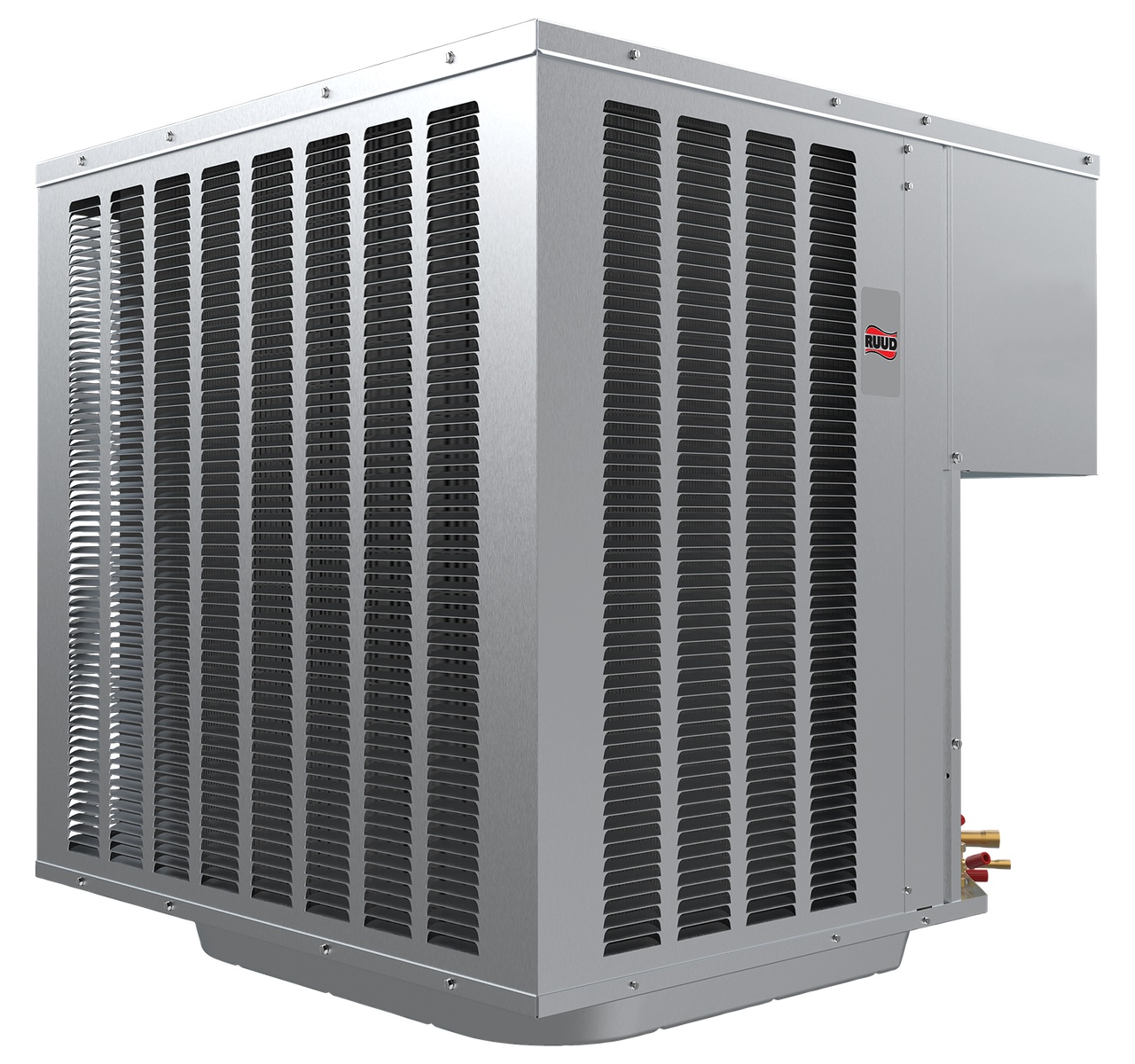

WeatherKing® WA13NY30AJ1NA Endeavor Line Choice 2.5 Ton Single-Stage A/C Condenser - R-454B, 208/230V, 1 Phase, 13.4-15.2 Seer2
WeatherKing® WA13NY30AJ1NA Endeavor Line Choice 2.5 Ton Single-Stage A/C Condenser - R-454B, 208/230V, 1 Phase, 13.4-15.2 Seer2

WeatherKing® WA13NY30AJ1NA Endeavor Line Choice 2.5 Ton Single-Stage A/C Condenser - R-454B, 208/230V, 1 Phase, 13.4-15.2 Seer2

WeatherKing® WA13NY30AJ1NA Endeavor Line Choice 2.5 Ton Single-Stage A/C Condenser - R-454B, 208/230V, 1 Phase, 13.4-15.2 Seer2

Manufacturer: RUUD
Brand: WeatherKing®
Part #: 446155
MPN: WA13NY30AJ1NA
CPN:
Air Flow Direction      :      Vertical
BTU Cooling Rating (Custom)      :      30,000 BTU/h
BTU Cooling Rating      :      28,400 BTU/h
Compressor Type      :      Scroll
Depth      :      33.66 in
EER2 (Custom)      :      8.0~9.0~10.0~11.0~12.0
EER2      :      8.5-12.0
ENERGY STAR Certified      :      Yes
Height      :      25.16 in
Liquid Line Size      :      3/8 in
Max Breaker Size      :      25 A
Minimum Circuit Ampacity (MCA)      :      17 A
Model Number      :      WA13NY
Number of Stages      :      Single-Stage
Packaged Depth      :      36.63 in
Packaged Height      :      27.06 in
Packaged Width      :      36.63 in
Phase      :      1 ph
Product Family      :      Endeavor Line Choice
Product Weight      :      151 lbs
Refrigerant Type      :      R-454B
SEER2 (Custom)      :      13.0~14.0~15.0
SEER2      :      13.4-15.2
Shipping Weight      :      179 lbs
Sound Level      :      71 dB(A)
Suction Line Size      :      3/4 in
Tonnage (Custom)      :      2.5 Ton
Tonnage      :      2.5 Ton
Voltage Rating      :      208/230 V
Width      :      33.66 in
