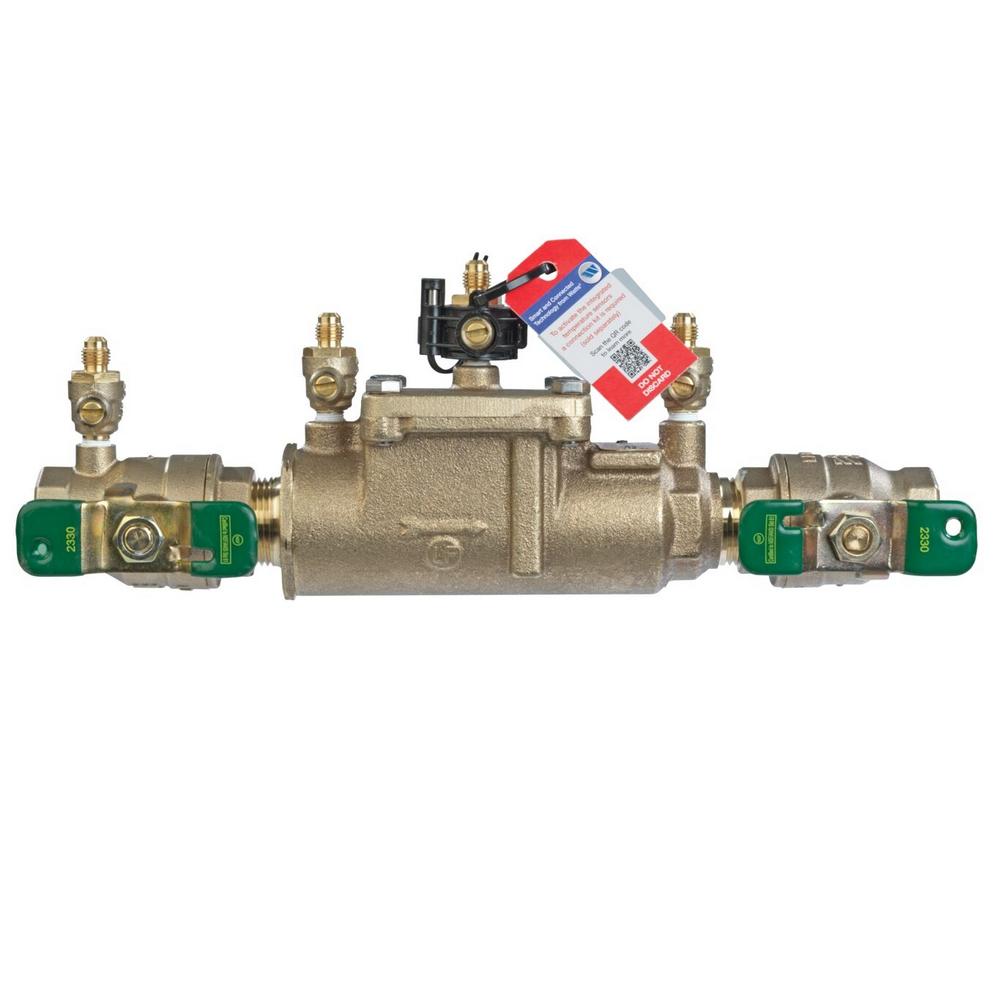

WATTS® T063232 Backflow Preventer Assembly, Double Check Valve, 1 in, FNPT, 1 in, FNPT, Copper Silicon Alloy Body

This 1 inch lead free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free cast copper silicon alloy body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats. The double check valve includes a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), irrigation management systems (IMS).

WATTS® Backflow Preventer Assembly, Double Check Valve, 1 in, FNPT, 1 in, FNPT, Copper Silicon Alloy Body, 175 psi Max Working Pressure, 33 to 180 deg F, 13-1/4 in L, 5-1/8 in D, Yes, Yes, LF007 Series, 12 lb
