WATTS® 0545007 2-Piece Ball Valve, Ball Valve, 1 in Nominal, Connection Size 1: 1 in, Connection Type 1: FNPT
WATTS® 0545007 2-Piece Ball Valve, Ball Valve, 1 in Nominal, Connection Size 1: 1 in, Connection Type 1: FNPT
| Body Material | : | Brass |
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Connection Type 1 | : | FNPT |
| Connection Type 2 | : | FNPT |
| Flow Rate | : | 1200 cu-ft/hr |
| Lead-Free Compliant | : | No |
| Maximum Working Pressure | : | 5 psi |
| Nominal Size | : | 1 in |
| Operating Temperature Rating | : | -20 to 125 deg F |
| Product Family | : | GBV Series |
| Seal Material | : | PTFE |
| Top to Inlet Center | : | 1-9/16 in |
| UL Listed | : | Yes |
| Valve Type | : | Ball |

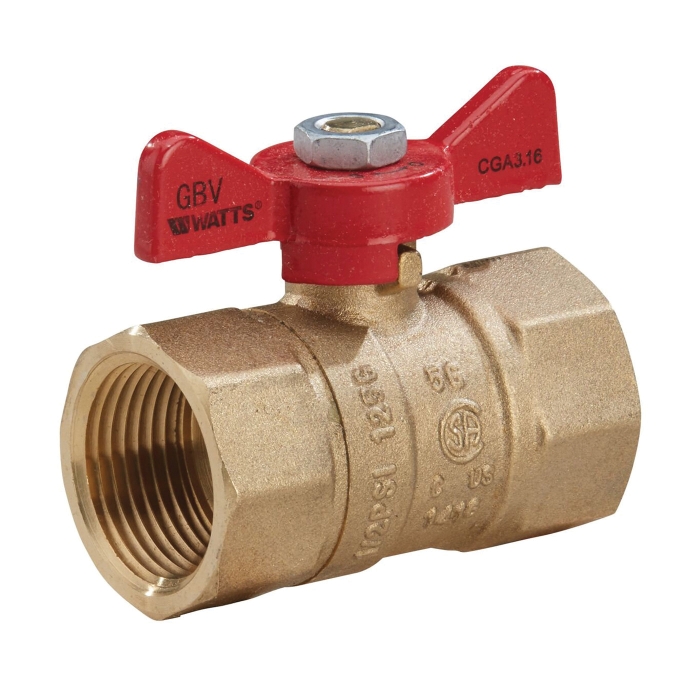

This 1 inch two-piece brass gas ball valve with female threaded end connections is used in residential and commercial applications for natural gas and LP gas on in-house and indoor piping systems. The valve features brass body construction, virgin PTFE seats and seals, brass end piece and plug, and zinc alloy handle. The temperature range is -20 to 125 degrees F (-29 to 52 degrees C). The maximum working pressure is 5 psi (34 kPa).
WATTS® 2-Piece Ball Valve, Ball Valve, 1 in Nominal, Connection Size 1: 1 in, Connection Type 1: FNPT, Connection Size 2: 1 in, Connection Type 2: FNPT, Brass Body, PTFE Seal, 5 psi Maximum Working Pressure, -20 to 125 deg F, 1200 cu-ft/hr Flow Rate, No, Yes, GBV Series, 1-9/16 in Top to Inlet Center
- Brass two-piece body construction
- NPT female connections and T- handle
- Used for LP and natural gas in residential and commercial applications
- Complies with ANSI standards for gas piping
- UL approved at 5 psi (34.2 kPa)
