WATTS® 0123618 Boiler Drain Shutoff, 1/2 in Inlet Connection, Male IPS Inlet Connection, 1/2 in Outlet Connection
WATTS® 0123618 Boiler Drain Shutoff, 1/2 in Inlet Connection, Male IPS Inlet Connection, 1/2 in Outlet Connection
| Body Material | : | Brass |
| Body Pattern | : | Angle |
| Function Type | : | Shutoff |
| Inlet Connection Size | : | 1/2 in |
| Inlet Connection Type | : | Male IPS |
| Lead-Free Compliant | : | Yes |
| Length | : | 1-1/3 in |
| Maximum Working Pressure | : | 200 psi |
| Operating Temperature Rating | : | 250 deg F |
| Outlet Connection Size | : | 1/2 in |
| Outlet Connection Type | : | MGHT |
| Product Family | : | LFBD Series |
| Seal Material | : | PTFE |
| Width | : | 2-1/10 in |

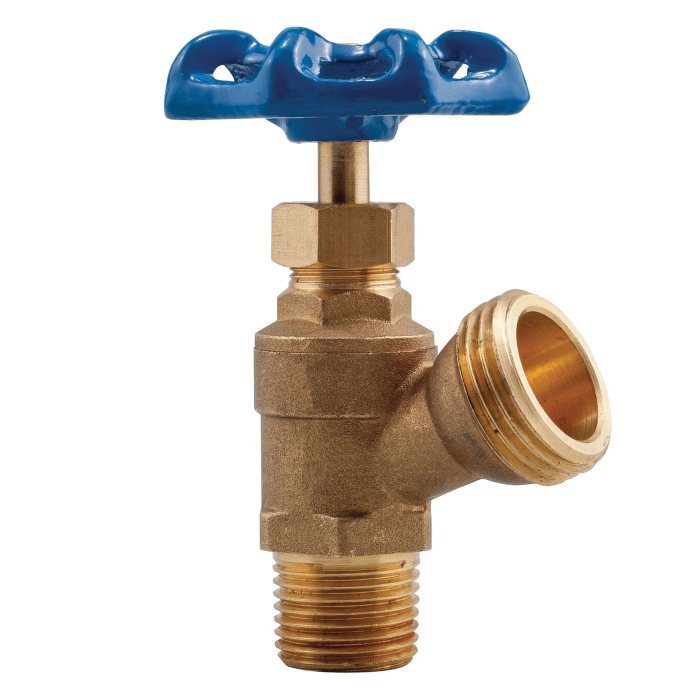

This 1/2 inch lead free angle pattern boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a lead free body construction and 1/2 inch dual connection for either solder or male IPS and 3/4 inch hose thread connection, PTFE stem packing, and cast iron handwheel. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 250 degrees F (121 degrees C).
WATTS® Boiler Drain Shutoff, 1/2 in Inlet Connection, Male IPS Inlet Connection, 1/2 in Outlet Connection, MGHT Outlet Connection, Brass Body, PTFE Seal, Angle Body Pattern, 200 psi Maximum Working Pressure, 250 deg F, 1-1/3 in Length, 2-1/10 in Width, Yes, LFBD Series, Shutoff Function Type
- Lead free construction
- Angle pattern
- Dual inlet connection, male IPS or solder inlet
- Hose thread outlet
