| ASTM Specifications | : | ASTM B1029, ASTM B75, ASTM B88, ASTM F3226, ASTM G93 |
| Angle | : | 45 deg |
| Application | : | Hot and Cold Potable Water, Rainwater/Gray Water, Chilled Water, Hydronic Heating, Low-Pressure Steam with FKM, Sealing Element Swap, Residential Steam, Ethanol, Compressed Air, Non-Medical Gases and Vacuum |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Press |
| Fitting Type | : | 45 deg Elbow |
| Material Construction | : | Lead-Free Copper |
| Material Grade | : | C12200 |
| Material | : | Copper |
| Maximum Working Pressure | : | 300 psi |
| NSF Certified | : | Yes |
| Operating Temperature Rating | : | 0 to 250 deg F |
| Package Quantity | : | 10 Pack |
| Product Family | : | ProPress 2926 Series |
| Product Weight | : | 0.094 lb |
| Reducing | : | No |

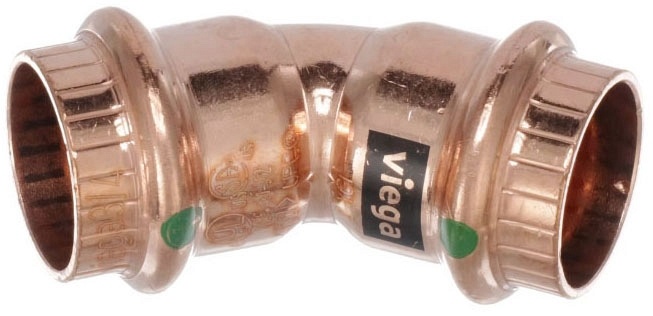

Viega ProPress sets the standard for press technology with more approved fitting configurations across more applications than any other press system. Press connections can be made wet or dry in seven seconds or less on copper and stainless steel pipe in s.
Viega 45 deg Elbow, Product Family: ProPress 2926 Series, 1/2 in Connection Size 1, 1/2 in Connection Size 2, Connection Type 1: Press, Connection Type 2: Press, C12200 Material Grade, 45 deg Angle, Material Construction: Lead-Free Copper, 300 psi Maximum Working Pressure, Reducing: No, Application: Hot and Cold Potable Water, Rainwater/Gray Water, Chilled Water, Hydronic Heating, Low-Pressure Steam with FKM, Sealing Element Swap, Residential Steam, Ethanol, Compressed Air, Non-Medical Gases and Vacuum, NSF Certified: Yes, ASTM Specifications: ASTM B1029, ASTM B75, ASTM B88, ASTM F3226, ASTM G93, 0 to 250 deg F Operating Temperature
