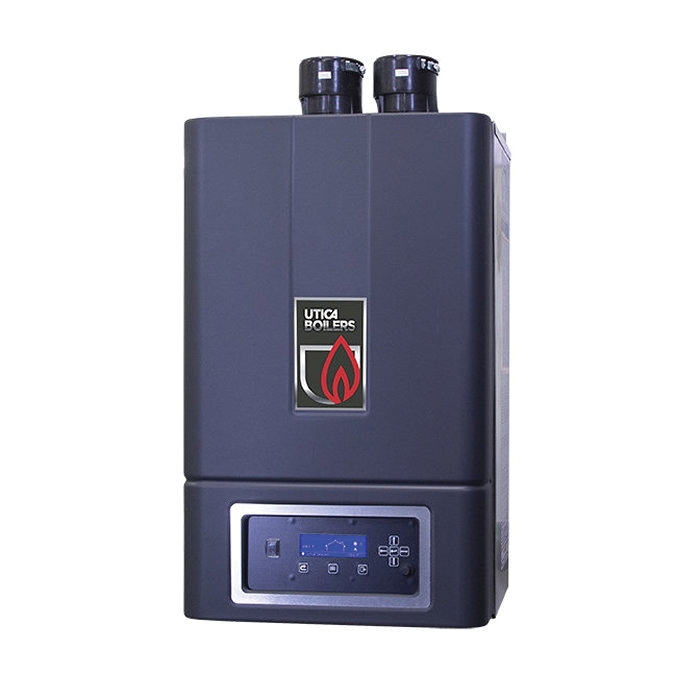

UTICA BOILERS CH-100 Gas Fired Boiler, Liquid Propane, Natural Gas Fuel, 100 MBtu/hr Heating Input, 95.2% AFUE, 120 V
UTICA BOILERS CH-100 Gas Fired Boiler, Liquid Propane, Natural Gas Fuel, 100 MBtu/hr Heating Input, 95.2% AFUE, 120 V
| AFUE | : | 95.2 % |
| BTU Heating Input Rating | : | 100 MBtu/hr |
| BTU Heating Output Rating | : | 92 MBtu/hr |
| Condensing | : | Yes |
| Depth | : | 16.93 in |
| Energy Star Certified | : | Yes |
| Fuel Type | : | Liquid Propane, Natural Gas |
| Gas Connection Size | : | 3/4 in |
| Height | : | 28.23 in |
| Ignition Type | : | Direct Spark |
| Inlet Connection Size | : | 3/4 in |
| Installation / Mounting Type | : | Wall |
| Media / Fluid Type | : | Water |
| Outlet Connection Size | : | 3/4 in |
| Phase | : | 1 ph |
| Product Family | : | Oneida CH Series |
| Vent Type | : | Direct |
| Voltage Rating | : | 120 V |
| Width | : | 17.4 in |
Advanced Home Heating for Dependable Comfort The high efficiency Oneida Boiler Series is designed for optimal performance to reduce energy use and provide years of reliable operation. The CH (Central Heat) models include 5 sizes ranging from 80,000 Btu/h - 180,000 Btu/h.
UTICA BOILERS Gas Fired Boiler, Liquid Propane, Natural Gas Fuel, 100 MBtu/hr Heating Input, 92 MBtu/hr BTU Heating Output, 95.2 % AFUE, Condensing: Yes, 1 ph Phase, 120 V, Direct Vent, Yes, Direct Spark Ignition, Water Media / Fluid, 3/4 in Gas Connection, 3/4 in Inlet Connection, 3/4 in Outlet Connection, Wall Installation / Mounting, 28.23 in Height, 17.4 in Width, 16.93 in Depth, Oneida CH Series
- Next Generation Enhanced Stainless Steel Water-Tube Heat Exchanger
- Full Residential Range from 80 to 180 MBH Inputs
- High Efficiency at 95.2% AFUE with up to 10:1 Turndown
- Energy Star Certified
- Intuitive Control for Easy Use and Setup
- Display can be set to 1 out of 18 different languages
- Built in cascade control for up to 16 boilers
- Easy Installation and Service
- Twin Pipe Venting with included 3-in-1 Adjustable Boiler Vent Connector For Different Vent Materials
- PVC, CPVC, Polypropylene, and Stainless-Steel Venting
- Advanced Safety Features for Peace-of-Mind
- Compact Wall Hung Design under 101 lbs
- Natural Gas or easily converted to propane (LP)
