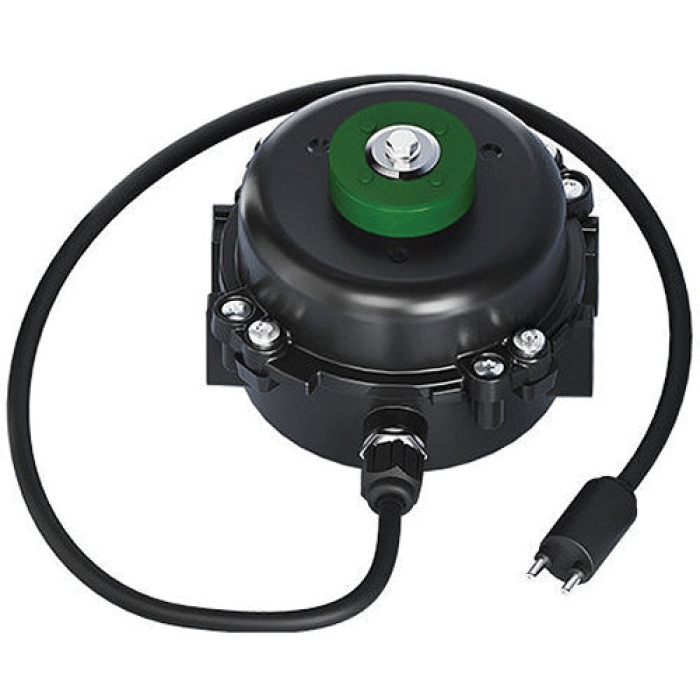

US Motors® RESCUE® EC5412N Electric Motor, 115 V, 1 ph, 1550/1725 rpm Motor RPM, ECM Motor, TEAO Enclosure, Iron
US Motors® RESCUE® EC5412N Electric Motor, 115 V, 1 ph, 1550/1725 rpm Motor RPM, ECM Motor, TEAO Enclosure, Iron
Manufacturer: Nidec Corporation
Brand: US Motors®
Part #: 359378
MPN: EC5412N
CPN:
| Amperage Rating | : | 0.22 to 0.75/0.15 to 0.45 A |
| Enclosure Type | : | TEAO |
| Function Type | : | Motor |
| Material | : | Iron |
| Motor RPM | : | 1550/1725 rpm |
| Motor Type | : | ECM |
| NEMA Frame Size | : | 33 |
| Number of Speeds | : | 2 |
| Operating Temperature Rating | : | -40 to 55 deg C |
| Phase | : | 1 ph |
| Power Rating | : | 25 W |
| Product Family | : | RESCUE® |
| Product Type | : | Motor |
| Product Weight | : | 1.55 lb |
| Rotation Direction | : | CCW |
| Service Factor | : | 1 |
| Voltage Rating | : | 115 V |
US Motors® Electric Motor, 115 V, 1 ph Phase, 1550/1725 rpm Motor RPM, ECM Motor, TEAO Enclosure, 33 Frame, 2 Speed, CCW Rotation Direction, Service Factor: 1, 0.22 to 0.75/0.15 to 0.45 A, RESCUE®, Motor Function Type, Iron, -40 to 55 deg C, 25 W
- RESCUE® Refrigeration ECM
- Refrigeration evaporator and condenser
- Elco top mount and Hussmann back mount
- Dual Voltage
- IP67 Rated
