| Depth | : | 2-11/32 in |
| For Use With | : | Boilers |
| Frequency | : | 50 Hz |
| Function Type | : | Control |
| Height | : | 9 in |
| Product Type | : | Control |
| Shipping Weight | : | 3.3 lb |
| Voltage Rating | : | 115 V |
| Width | : | 8 in |

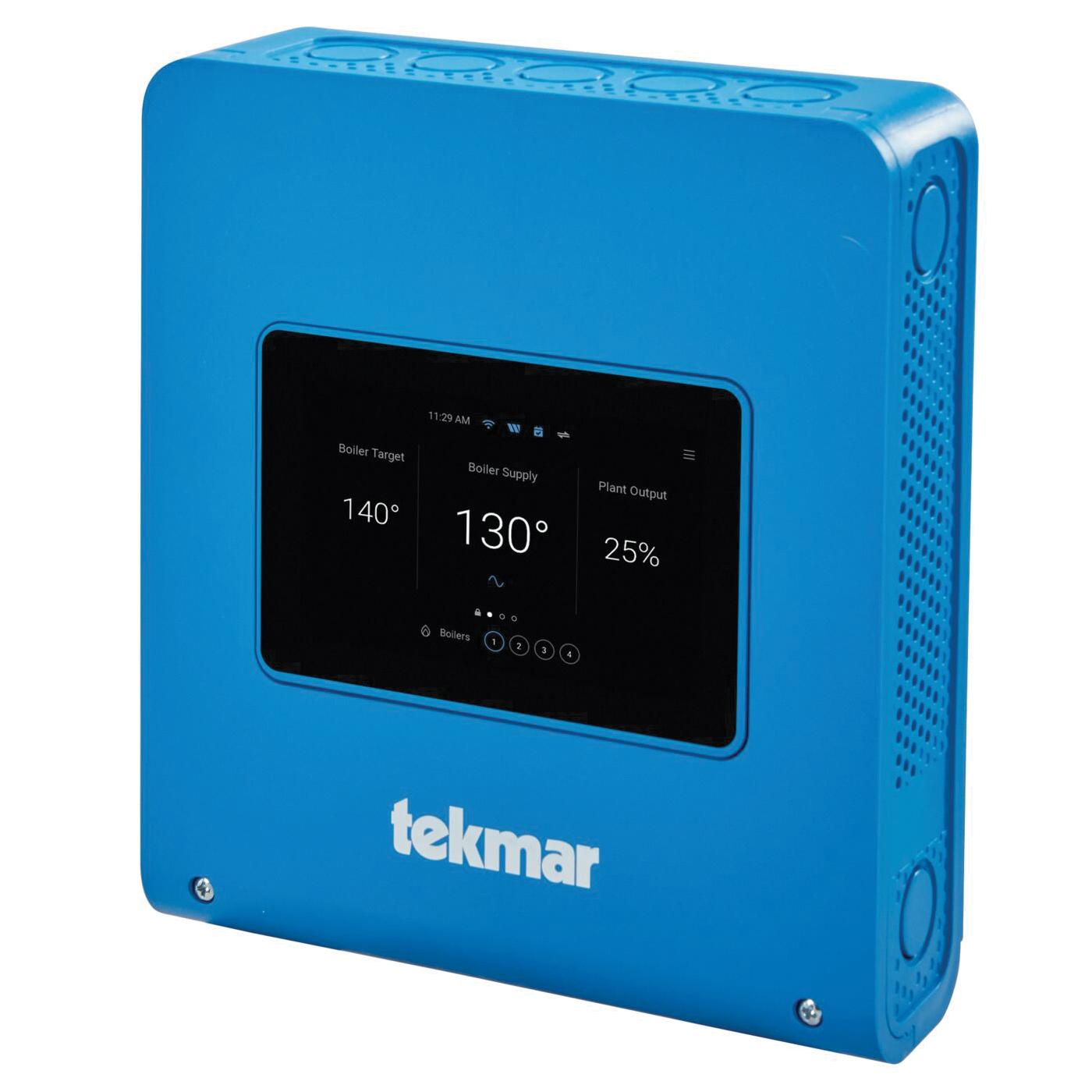

The Smart Boiler Control 294 provides central and indirect domestic hot water heating or volume domestic hot water heating by operating up to four boilers. This can be expanded in groups of four boilers through the use of expansion controls up to a maximum of sixteen boilers. The 294 operates both condensing and non-condensing boilers that are either modulating, single, two, three or four-stage to provide a flexible, cost-effective hybrid boiler plant solution. The Nexa™ by Watts web and mobile applications provide real-time remote monitoring, setting adjustments, and notifications.
Tekmar® Smart Boiler Control, 115 V, 50 Hz Frequency, 9 in Height, 8 in Width, 2-11/32 in Depth, For Use With: Boilers, Control Function Type
- Remote access using Nexa by Watts web/mobile app and notifications through email, or text
- Operates 4 boilers, expandable up to 16 using expansion controls
- Sequential or parallel staging for condensing and non-condensing boiler groups
- Central heating using outdoor reset, indirect DHW, dedicated DHW, setpoint, and tekmarNet calls
- Supports reverse return, primary-secondary, and variable primary flow piping systems
- 5-inch color touchscreen with Setup Wizard for simplified installation
