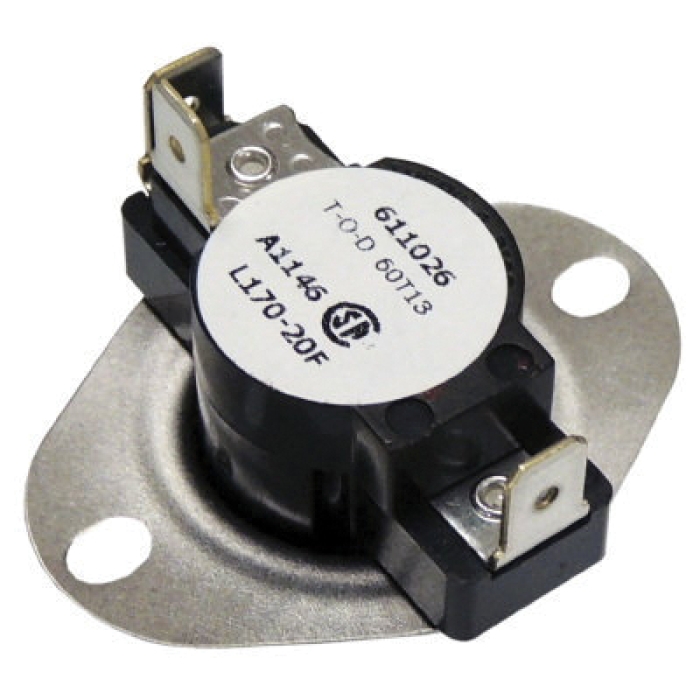

Supco® LD170 Thermostat, 120/240 V, 150 to 170 deg F Ambient Temperature Rating, 20 deg F Differential Temperature
Supco® LD170 Thermostat, 120/240 V, 150 to 170 deg F Ambient Temperature Rating, 20 deg F Differential Temperature

Supco® LD170 Thermostat, 120/240 V, 150 to 170 deg F Ambient Temperature Rating, 20 deg F Differential Temperature

Supco® LD170 Thermostat, 120/240 V, 150 to 170 deg F Ambient Temperature Rating, 20 deg F Differential Temperature

Manufacturer: Lennox International
Brand: Supco®
Part #: 258323
MPN: LD170
CPN:
Ambient Temperature Rating      :      150 to 170 deg F
Amperage Rating      :      10 A FLA, 60 A LRA, 25 RLA
Differential Temperature      :      20 deg F
Voltage Rating      :      120/240 V

The LD Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. Can handle loads up to 25 amps at 240VAC.

Supco® Thermostat, 120/240 V, 150 to 170 deg F Ambient Temperature Rating, 20 deg F Differential Temperature, 10 A FLA, 60 A LRA, 25 RLA

  • 1/4" quick disconnect terminals
  • Close when temperature differential is reached
  • Open on rise
  • SPDT thermostats
  • Welded construction for integrity of current-carrying components
