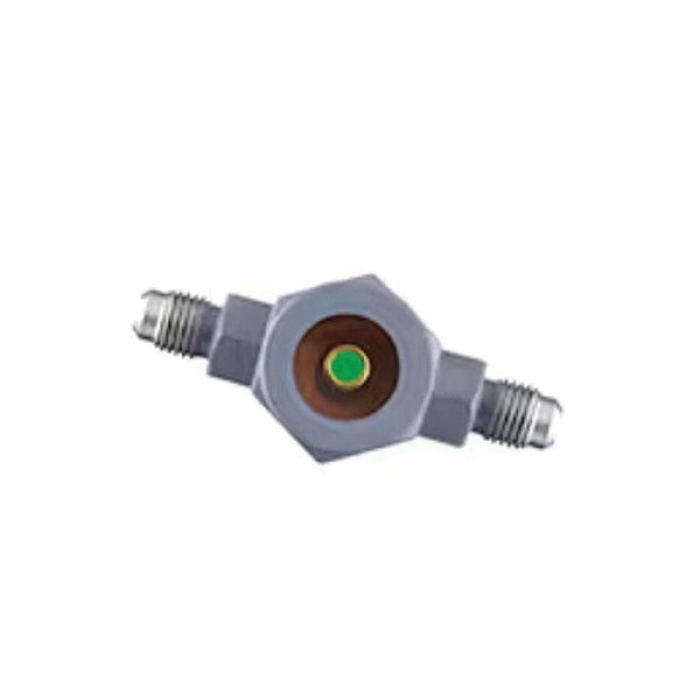

Sporlan® 700078 Moisture and Liquid Indicator, 3/8 in Connection Size 1, Connection Type 1: Male Flared, 3.37 in Width
Sporlan® 700078 Moisture and Liquid Indicator, 3/8 in Connection Size 1, Connection Type 1: Male Flared, 3.37 in Width
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type 1 | : | Male Flared |
| Connection Type 2 | : | Male Flared |
| Function Type | : | Indicator |
| Maximum Working Pressure | : | 650 psi |
| Product Family | : | See-All® Series |
| Product Type | : | Indicator |
| Width | : | 3.37 in |
The Sporlan Type See-All moisture liquid indicator combines two functions of moisture and liquid indication into a single economical product. The indicator is a porous filter paper that is sensitive to moisture. A green dark color indicates the refrigerant is dry. A yellow color indicates the refrigerant is wet. The indicator is formulated so that it changes color at the moisture levels generally accepted as the safe operating range. Also, one can see through the sight glass to determine refrigerant is at the proper level in the liquid line to feed the expansion device. Each valve is factory tested to ensure positive leak-free performance.
Sporlan® Moisture and Liquid Indicator, 3/8 in Connection Size 1, Connection Type 1: Male Flared, 3/8 in Connection Size 2, Connection Type 2: Male Flared, 3.37 in Width, 650 psi Maximum Working Pressure, Product Family: See-All® Series, Indicator Function Type
- One indicator for all refrigerants
- Reliable and accurately calibrated color change
- Replaceable indicator element
- Indicator protected from discoloration and dirt
- Color changes are easily distinguished and reversible
- Large full view of sight glass
- Disassembly for installation is unnecessary
- Design working pressure for the See-Alls is 650 psi (44.8 bar),
