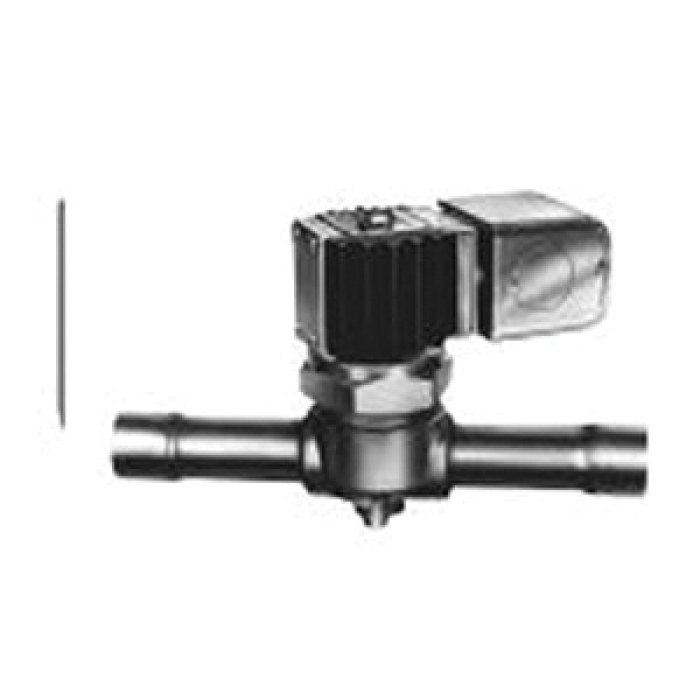

Sporlan® 3591-00 Solenoid Valve, 7/8 in Main Line Connection, ODF Main Line Connection, 19/32 in Service Port Connection
Sporlan® 3591-00 Solenoid Valve, 7/8 in Main Line Connection, ODF Main Line Connection, 19/32 in Service Port Connection
| Height | : | 4.22 in |
| Main Line Connection Size | : | 7/8 in |
| Main Line Connection Type | : | ODF |
| Material | : | Brass |
| Maximum Working Pressure | : | 700 psi |
| Product Family | : | E19 Series |
| Refrigerant Type | : | R-134A, R-22, R-401A, R-402A, R-404A, R-407C, R-502, R-507 |
| Service Port Connection Size | : | 19/32 in |
| Width | : | 7.13 in |
Types B19 and E19 Series are pilot operated solenoid valves for refrigeration and air conditioning applications. They are suitable for suction service because very low pressure differential, 1 psi, is required for full operation. These valves may be mounted horizontally, on their side or in a vertical line. The Type E19 series solenoid valves feature extended solder type connections as standard. One important benefit to the user is that all valves in the "E19" series can be installed without disassembly using either low or no silver content brazing alloy.
Sporlan® Solenoid Valve, 7/8 in Main Line Connection, ODF Main Line Connection, 19/32 in Service Port Connection, R-134A, R-22, R-401A, R-402A, R-404A, R-407C, R-502, R-507 Refrigerant, Brass, 700 psi Maximum Working Pressure, 7.13 in Width, 4.22 in Height, E19 Series
