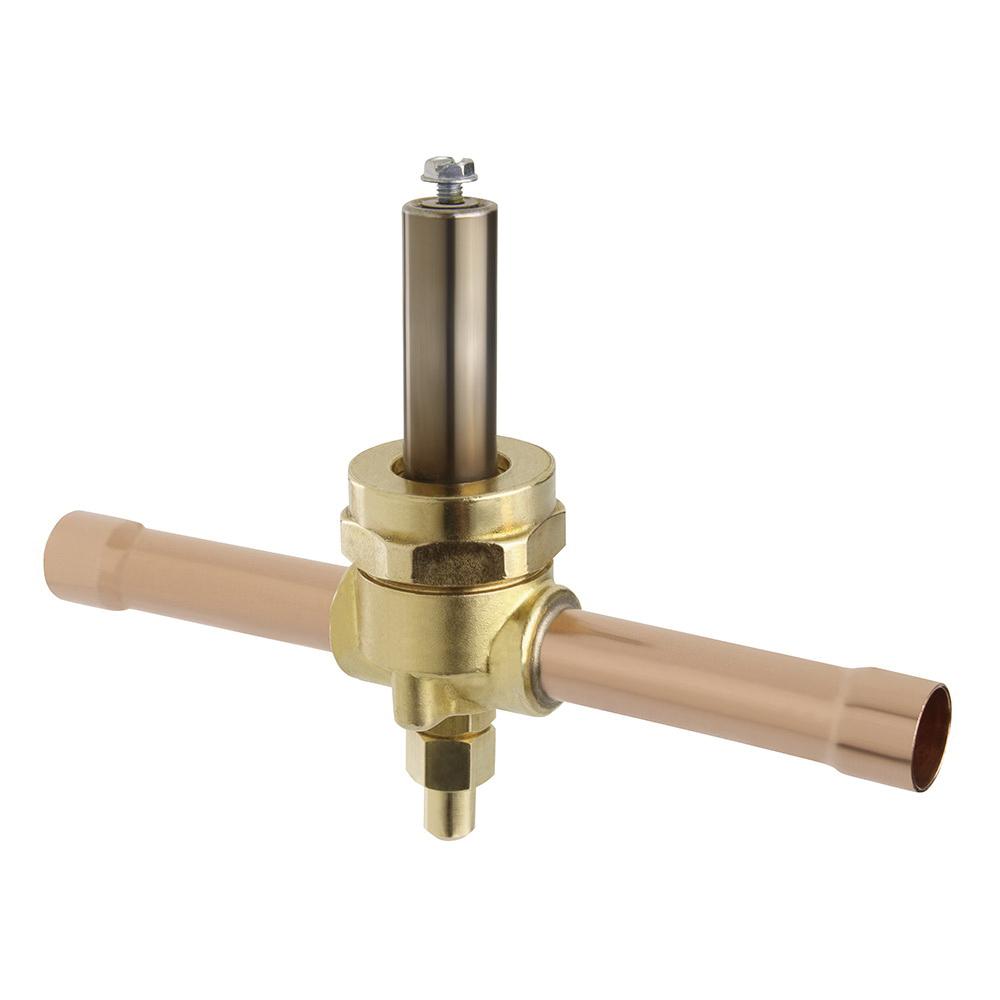

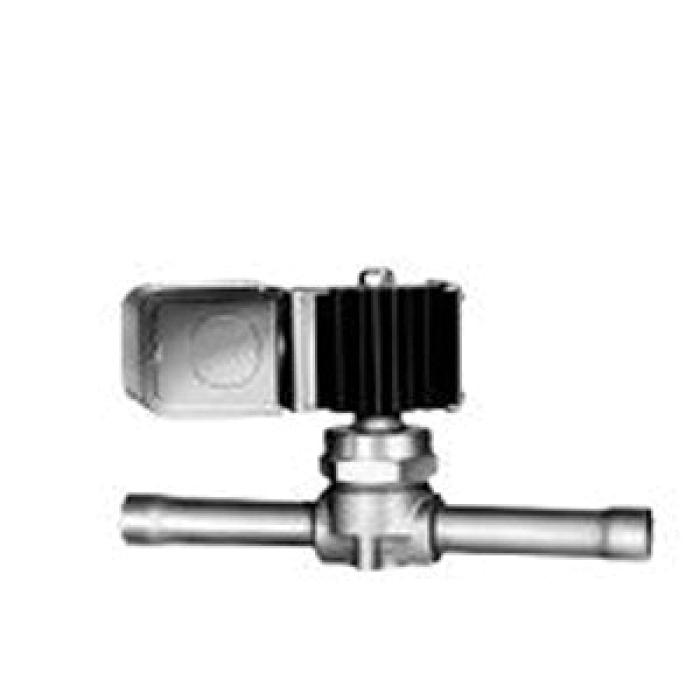

Sporlan® 3524-00 Solenoid Valve, 5/8 in Main Line Connection, ODF Extended Solder Main Line Connection, Brass
Sporlan® 3524-00 Solenoid Valve, 5/8 in Main Line Connection, ODF Extended Solder Main Line Connection, Brass
| Height | : | 3.72 in |
| Main Line Connection Size | : | 5/8 in |
| Main Line Connection Type | : | ODF Extended Solder |
| Material | : | Brass |
| Maximum Working Pressure | : | 500 psi |
| Product Family | : | E14 Series |
| Refrigerant Type | : | R-134A, R-22, R-401A, R-402A, R-404A, R-407C, R-502, R-507 |
| Service Port Connection Size | : | 7/16 in |
| Width | : | 6.88 in |
Types B14 and E14 Series are compact solenoid valves with pilot operated disc construction for refrigeration and air conditioning. These valves may be mounted horizontally, on their side or in a vertical line. These valves are also suitable for suction line service because very low pressure differential, 1 psi, is required for full operation. The Type E14 series solenoid valves feature extended solder type connections as standard. One important benefit to the user is that all valves in the "E14" series can be installed without disassembly using either low or no silver content brazing alloy.
Sporlan® Solenoid Valve, 5/8 in Main Line Connection, ODF Extended Solder Main Line Connection, 7/16 in Service Port Connection, R-134A, R-22, R-401A, R-402A, R-404A, R-407C, R-502, R-507 Refrigerant, Brass, 500 psi Maximum Working Pressure, 6.88 in Width, 3.72 in Height, E14 Series
