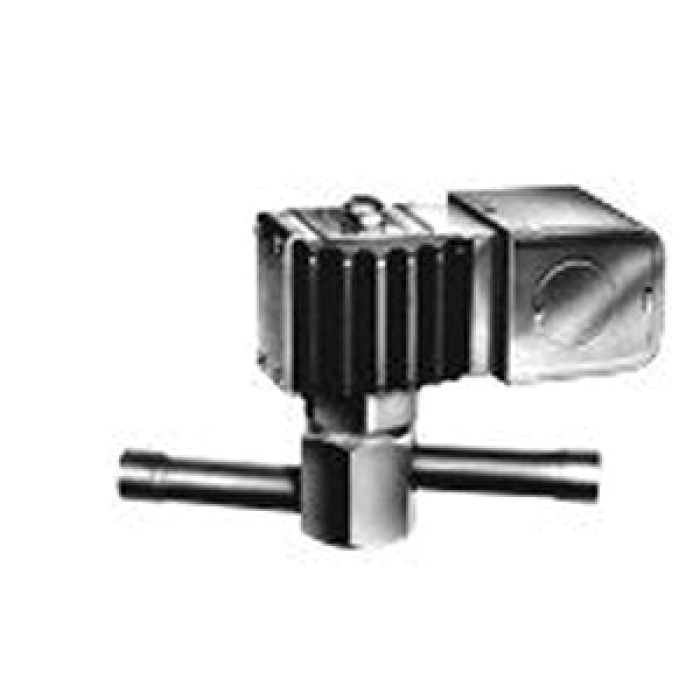

Sporlan® 3394-00 Solenoid Valve, 1/2 in Main Line Connection, ODF Solder Main Line Connection, Brass, 5 in Width
Sporlan® 3394-00 Solenoid Valve, 1/2 in Main Line Connection, ODF Solder Main Line Connection, Brass, 5 in Width
| Height | : | 3.45 in |
| Main Line Connection Size | : | 1/2 in |
| Main Line Connection Type | : | ODF Solder |
| Material | : | Brass |
| Maximum Working Pressure | : | 1015 psi |
| Operating Temperature Rating | : | 120 deg F |
| Product Family | : | E9 Series |
| Refrigerant Type | : | R-134A, R-22, R-401A, R-402A, R-404A, R-407C, R-502, R-507 |
| Service Port Connection Size | : | 9/32 in |
| Width | : | 5 in |
Types B9 and E9 Series are compact solenoid valves with pilot operated disc construction for refrigeration and air conditioning. These valves may be mounted horizontally, on their side or in a vertical line. These valves are also suitable for suction line service because very low pressure differential, 1 psi, is required for full operation. The Type E9 series solenoid valves feature extended solder type connections as standard. One important benefit to the user is that all valves in the "E9" series can be installed without disassembly using either low or no silver content brazing alloy.
Sporlan® Solenoid Valve, 1/2 in Main Line Connection, ODF Solder Main Line Connection, 9/32 in Service Port Connection, R-134A, R-22, R-401A, R-402A, R-404A, R-407C, R-502, R-507 Refrigerant, Brass, 1015 psi Maximum Working Pressure, 120 deg F, 5 in Width, 3.45 in Height, E9 Series
