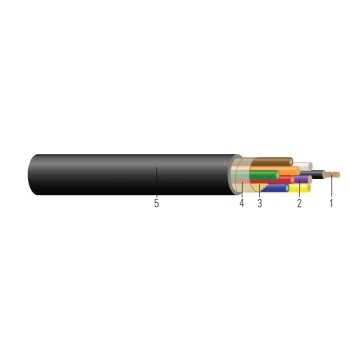

Southwire® 58225705 Mini-Split Cable, 14 AWG Wire, 4 Conductors, 50 ft Length, 600 V, Stranded Solid/Stranded
Southwire® 58225705 Mini-Split Cable, 14 AWG Wire, 4 Conductors, 50 ft Length, 600 V, Stranded Solid/Stranded
| Conductor Material | : | Copper |
| Function Type | : | Cable |
| Jacket Color | : | Black |
| Jacket Material | : | PVC |
| Length | : | 50 ft |
| Number of Conductors | : | 4 |
| Package Type | : | Coil |
| Product Type | : | Cable |
| Solid/Stranded | : | Stranded |
| UL Listed | : | Yes |
| Voltage Rating | : | 600 V |
| Wire Size | : | 14 AWG |
Southwire's 600 Volt Type TC-ER-JP control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 75 deg C in wet locations and 90 deg C in dry locations, 105 deg C for emergency overload, and 150 deg C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10. Sunlight Resistant - For Direct Burial - Silicone Free - VW-1 Rated.
Southwire® Mini-Split Cable, 14 AWG Wire, 4 Conductors, 50 ft Length, 600 V, Stranded Solid/Stranded, Copper Conductor, PVC Jacket, Black Jacket, Yes, Cable Function Type
