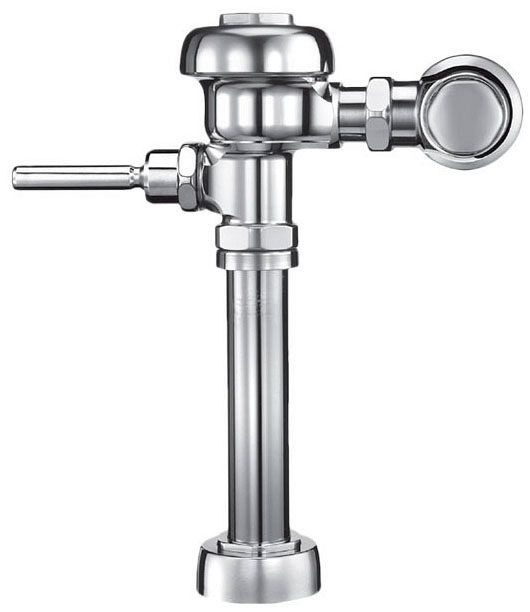

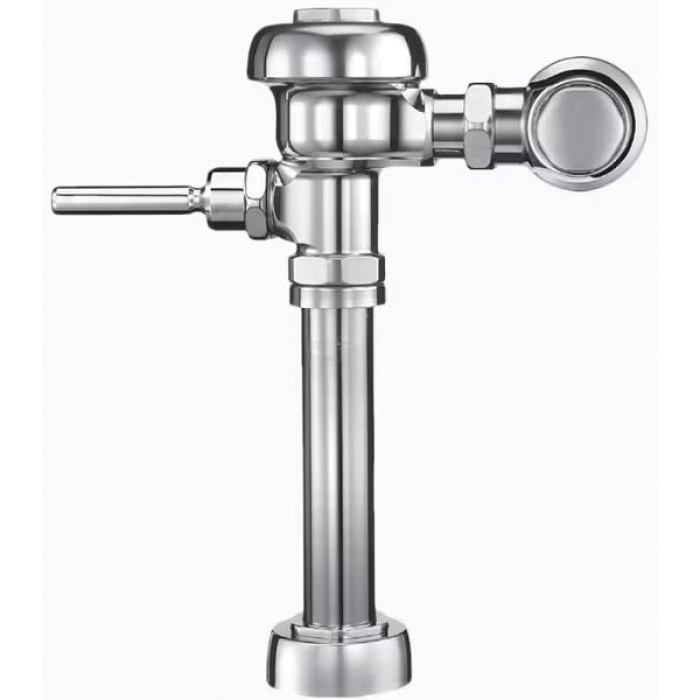

Sloan® 3780100 Exposed Manual Water Closet Flushometer, 3.5 gpf, 1-1/2 in Spud, Top Spud Location, 1 in Water Connection
Sloan® 3780100 Exposed Manual Water Closet Flushometer, 3.5 gpf, 1-1/2 in Spud, Top Spud Location, 1 in Water Connection
Manufacturer: Sloan Valve Company
Brand: Sloan®
Part #: 314733
MPN: 3780100
CPN:
| ADA Compliant | : | Yes |
| Dual Flush | : | No |
| Finish | : | Polished Chrome |
| Function Type | : | Flushometer |
| Gallons Per Flush (GPF) | : | 3.5 gpf |
| Material | : | Brass |
| Maximum Working Pressure | : | 80 psi |
| Minimum Working Pressure | : | 15 psi |
| Spud Location | : | Top |
| Spud Size | : | 1-1/2 in |
| Water Connection Size | : | 1 in |
Sloan® Exposed Manual Water Closet Flushometer, 3.5 gpf, 1-1/2 in Spud, Top Spud Location, 1 in Water Connection, Brass, 80 psi Maximum Working Pressure, 15 psi Minimum Working Pressure, No, Yes, Flushometer Function Type, Polished Chrome
- Flush volumes start as low as 3.5 gpf/13.2 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
