Sioux Chief PowerPEX® 630X248E Stub Out Elbow, Copper, 1/2 in Inlet, F1807 PEX Inlet, 1/2 in Outlet, Closed End Outlet
Sioux Chief PowerPEX® 630X248E Stub Out Elbow, Copper, 1/2 in Inlet, F1807 PEX Inlet, 1/2 in Outlet, Closed End Outlet
Manufacturer: Sioux Chief
Brand: Sioux Chief
Part #: 247368
MPN: 630X248E
CPN:
| ASTM Specifications | : | Yes |
| Angle | : | 90 deg |
| Function Type | : | Elbow |
| Inlet Connection Size | : | 1/2 in |
| Inlet Connection Type | : | F1807 PEX |
| Lead-Free Compliant | : | Yes |
| Length | : | 8 in |
| Material | : | Copper |
| Maximum Working Pressure | : | 160 psi |
| NSF Specifications | : | Yes |
| Operating Temperature Rating | : | 200 deg F |
| Outlet Connection Size | : | 1/2 in |
| Outlet Connection Type | : | Closed End |
| Package Quantity | : | 25 Case |
| Product Family | : | PowerPEX® 630 Series |
| Product Type | : | Elbow |

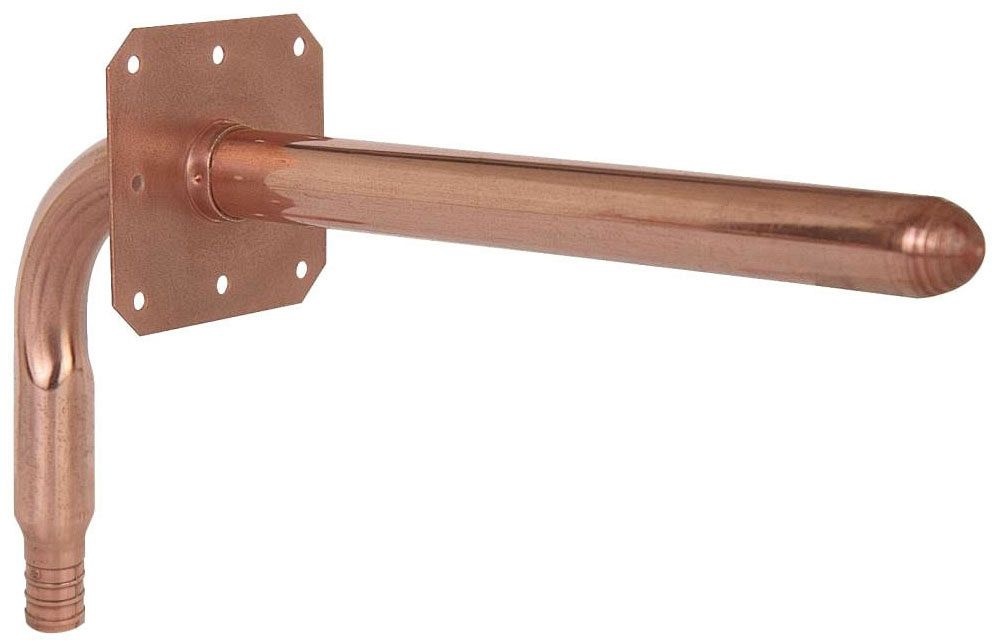

Sioux Chief 630 series stub out elbows shall be used where necessary in hot and cold water supply systems. Elbows shall be formed from Type L copper tubing with a spun-closed end and provide full flow to valve or fixture. Tube and elbow inlet connections shall conform to appropriate standards including ASTM F1807 fitting end specifications.
Sioux Chief Stub Out Elbow, Elbow, Copper, 1/2 in Inlet, F1807 PEX Inlet, 1/2 in Outlet, Closed End Outlet, 8 in L, 90 deg, 160 psi Max Working Pressure, 200 deg F, Yes, Yes, Yes, PowerPEX® 630 Series, 25 Case, Elbow
- Combines easy adapting of copper stub outs with easy installation of PEX system
- Square O Straps affix easily to the Edge bracket or any backing board to provide solid installations
- Integral square strap attaches to bracket or stud for solid installations
- Combines versatility of copper stub outs with easy installation of PEX system
- Type L copper tube - Accepts sweat, push-fitting and compression valves
