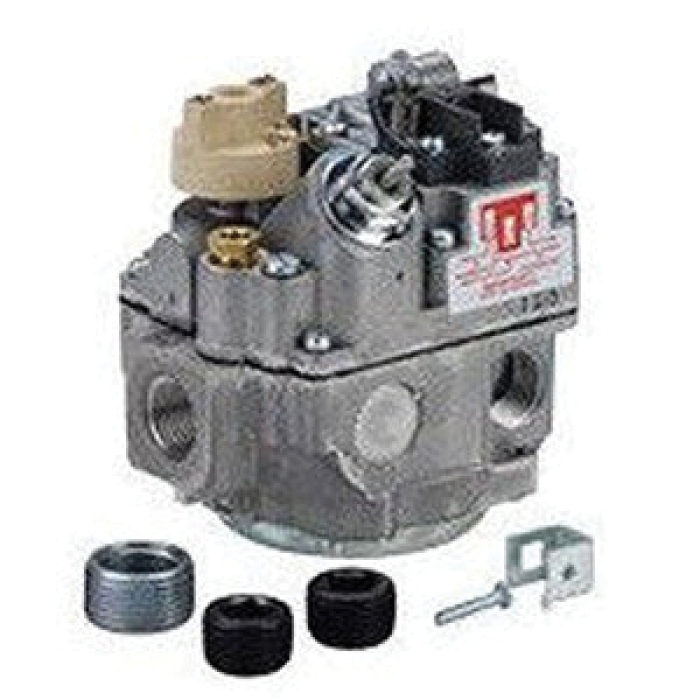

Robertshaw® 700-504 Millivolt Gas Valve, Liquid Propane, Natural Gas Fuel, 250-750 mV, 1/2 in Gas Valve Inlet Size
Robertshaw® 700-504 Millivolt Gas Valve, Liquid Propane, Natural Gas Fuel, 250-750 mV, 1/2 in Gas Valve Inlet Size
Manufacturer: Robertshaw
Brand: Robertshaw®
Part #: 86337
MPN: 700-504
CPN:
| BTU Rating | : | 240000 Btu/hr |
| Fuel Type | : | Liquid Propane, Natural Gas |
| Function Type | : | Valve |
| Gas Valve Inlet Size | : | 1/2 in |
| Gas Valve Outlet Size | : | 3/4 in |
| Inlet Gas Pressure Range | : | 0.5 psi |
| Operating Temperature Rating | : | -40 to 175 deg F |
| Product Family | : | 700 Series |
| Product Type | : | Valve |
| Voltage Rating | : | 250-750 mV |
The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8 pipe to high capacity 1 pipe up to 720,000 BTU usage.
Robertshaw® Millivolt Gas Valve, Liquid Propane, Natural Gas Fuel, 250-750 mV, 1/2 in Gas Valve Inlet Size, 3/4 in Gas Valve Outlet Size, 240000 Btu/hr BTU, 0.5 psi Inlet Gas Pressure Range, -40 to 175 deg F, 700 Series, Valve Function Type
- Gas cock dial marking Off - Pilot - On
- Pilot outlet 1/4 tubing
- Ambient temperature of -40 deg F to 175 deg F
- Combination screw/spade terminal type
- Maximum inlet pressure 14 WC (0.5 PSI)
- Standard NEMA terminals
- Inlet filtered screen
- Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
- RoHS compliant
