resideo TH1320U4002/U Non-Programmable Thermostat, 20-30 V, 3H/2C, 2H/2C Stages, Yes Humidity Control, AA Battery
resideo TH1320U4002/U Non-Programmable Thermostat, 20-30 V, 3H/2C, 2H/2C Stages, Yes Humidity Control, AA Battery
| Accuracy | : | +/-1 deg F |
| Amperage Rating | : | 0.05 A |
| Battery Type | : | AA |
| Color | : | Premier White |
| Depth | : | 1.188 in |
| Display Type | : | Backlit |
| Height | : | 3.438 in |
| Humidity Control | : | Yes |
| Humidity Rating | : | 5 to 90 % |
| Number of Stages | : | 3H/2C, 2H/2C |
| Power Source | : | Battery, Hardwired |
| Setpoint Temperature Range | : | 50 to 99 deg F Cooling, 32 to 90 deg F Heating |
| Terminal Designations | : | C, E, G, K, L, O/B, R, RC, S, S, W, W2-AUX, Y, Y2 |
| Voltage Rating | : | 20-30 V |
| Width | : | 5-1/8 in |

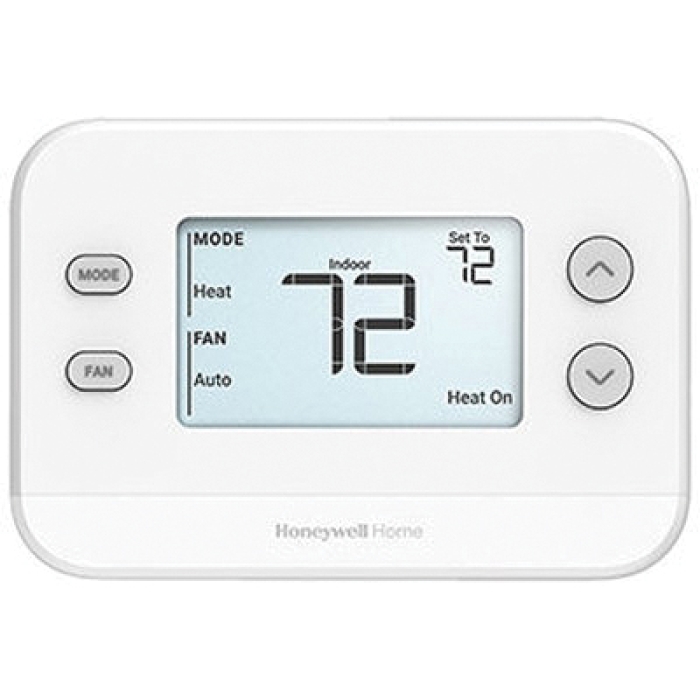

The Honeywell Home FocusPRO® N100 is designed for pro ease-of-use and profitability. It reduces job complexities and time on-site while supporting recurring business thanks to its broad system compatibility, UWP® wall plate, large display and clear font, snap-on private label, and competitive price.
resideo Non-Programmable Thermostat, 20-30 V, 3H/2C, 2H/2C Stages, Yes Humidity Control, Battery, Hardwired Power Source, AA Battery, Backlit Display, Premier White, 50 to 99 deg F Cooling, 32 to 90 deg F Heating Setpoint Temperature Range, +/-1 deg F Accuracy, 5 to 90 % Humidity Rating, 0.05 A, C, E, G, K, L, O/B, R, RC, S, S, W, W2-AUX, Y, Y2 Terminal Designations, 3.438 in Height, 5-1/8 in Width, 1.188 in Depth
- Supports single-stage 1H/1C for TH1110U4000/U or up to 3H/2C heat pump and 2H/2C conventional for TH1320U4002/U
- UWP® wall plate supports speedy installation and easy upgrade
- Private label with customized snap-on accent piece
- Large display with clear font
- Customizable display settings
- Intuitive interface for easy navigation
- Choose to receive filter reminders
- Heat low limit defaults to 40deg F (4deg C) but configurable to 32deg F (0deg C) for garage applications
- Dual fuel compatible*
- Wired outdoor sensor compatibile*
- Fan lockout after cool call option
