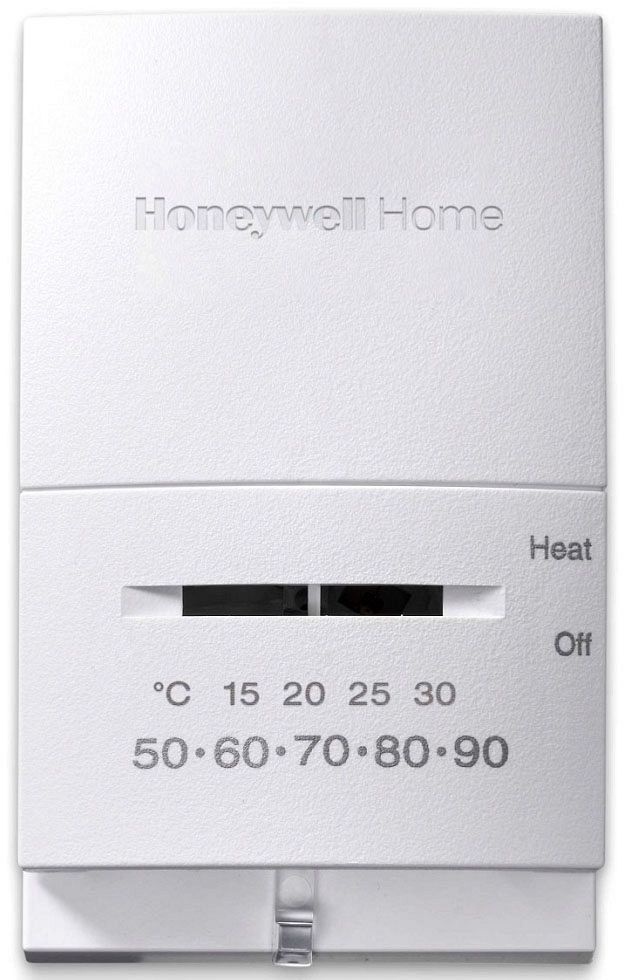

resideo T827K1009/U Non-Programmable Thermostat, 12 V, 1H Stages, Premier White, +/-2 deg F Accuracy, 4-3/4 in Height
resideo T827K1009/U Non-Programmable Thermostat, 12 V, 1H Stages, Premier White, +/-2 deg F Accuracy, 4-3/4 in Height

resideo T827K1009/U Non-Programmable Thermostat, 12 V, 1H Stages, Premier White, +/-2 deg F Accuracy, 4-3/4 in Height

resideo T827K1009/U Non-Programmable Thermostat, 12 V, 1H Stages, Premier White, +/-2 deg F Accuracy, 4-3/4 in Height

Manufacturer: Resideo Technologies Inc
Brand: resideo
Part #: 285460
MPN: T827K1009/U
CPN:
Accuracy      :      +/-2 deg F
Color      :      Premier White
Depth      :      1-3/8 in
Height      :      4-3/4 in
Number of Stages      :      1H
Setpoint Temperature Range      :      45 to 95 deg F
Switch Action      :      SPST
Terminal Designations      :      R, W
Voltage Rating      :      12 V
Width      :      2-7/8 in

Heating thermostats provides control of 750 mV or 12 Vdc heating systems.

resideo Non-Programmable Thermostat, 12 V, 1H Stages, Premier White, 45 to 95 deg F Setpoint Temperature Range, +/-2 deg F Accuracy, R, W Terminal Designations, 4-3/4 in Height, 2-7/8 in Width, 1-3/8 in Depth, SPST Switch Action

  • Rated for 12 Vdc and millvoltage systems
  • Coiled bimetal element operates snap-acting switch
  • Temperature setting lever on bottom of thermostat
  • Mounting using two screws through base to wall or vertical outlet box
  • Temperature setting and thermometer scale on cover
  • Catalog https://www.bellsimons.com//ASSETS/DOCUMENTS/ITEMS/EN/resideo_T8034N1007_U_Catalog.pdf
  • Owners/User Manual https://www.bellsimons.com//ASSETS/DOCUMENTS/ITEMS/EN/resideo_T822K1018_U_Owners_User_Manual.pdf
