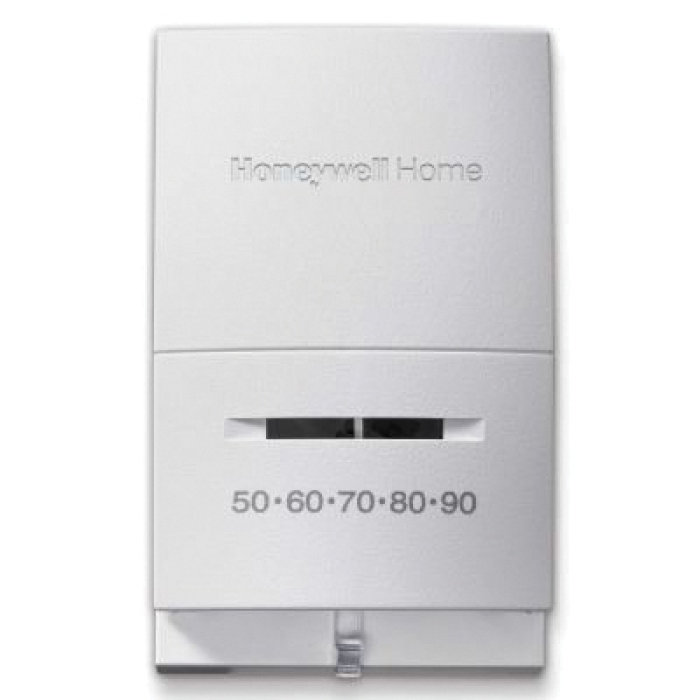

resideo T822K1018/U Non-Programmable Thermostat, 20-30 V, 1H Stages, Premier White, +/-2 deg F Accuracy, 4-3/4 in Height
resideo T822K1018/U Non-Programmable Thermostat, 20-30 V, 1H Stages, Premier White, +/-2 deg F Accuracy, 4-3/4 in Height

resideo T822K1018/U Non-Programmable Thermostat, 20-30 V, 1H Stages, Premier White, +/-2 deg F Accuracy, 4-3/4 in Height

resideo T822K1018/U Non-Programmable Thermostat, 20-30 V, 1H Stages, Premier White, +/-2 deg F Accuracy, 4-3/4 in Height

Manufacturer: Resideo Technologies Inc
Brand: resideo
Part #: 285623
MPN: T822K1018/U
CPN:
Accuracy      :      +/-2 deg F
Color      :      Premier White
Depth      :      1-3/8 in
Height      :      4-3/4 in
Installation / Mounting Type      :      Outlet Box, Wall
Number of Stages      :      1H
Setpoint Temperature Range      :      45 to 95 deg F
Switch Action      :      SPST
Terminal Designations      :      R, W
Voltage Rating      :      20-30 V
Width      :      2-7/8 in

Thermostats provide 24 Vac control of heating or cooling systems.

resideo Non-Programmable Thermostat, 20-30 V, 1H Stages, Premier White, 45 to 95 deg F Setpoint Temperature Range, +/-2 deg F Accuracy, R, W Terminal Designations, Outlet Box, Wall Installation / Mounting, 4-3/4 in Height, 2-7/8 in Width, 1-3/8 in Depth, SPST Switch Action

  • Vented cover for improved temperature sensing
  • Setting lever and thermometer scale on thermostat face
  • Mounts directly on the wall or on vertical outlet box
  • Integrated thermometer and setting scale
  • Catalog https://www.bellsimons.com//ASSETS/DOCUMENTS/ITEMS/EN/resideo_T8034N1007_U_Catalog.pdf
  • Instruction/Installation Manual https://www.bellsimons.com//ASSETS/DOCUMENTS/ITEMS/EN/resideo_T822K1018_U_Instruction_Installation_Manual.pdf
  • Owners/User Manual https://www.bellsimons.com//ASSETS/DOCUMENTS/ITEMS/EN/resideo_T822K1018_U_Owners_User_Manual.pdf
