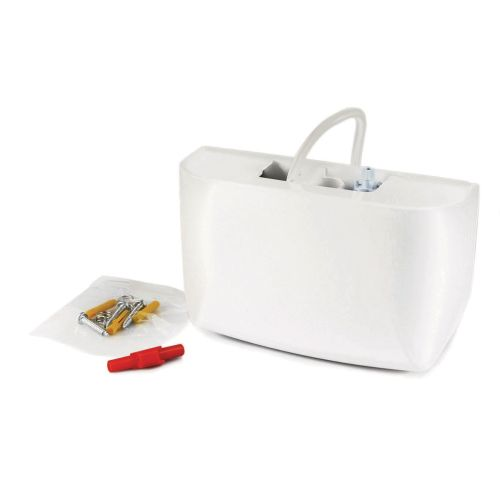

RectorSeal Aspen Mini White ASP-MW-UNI Condensate Pump Kit, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature
RectorSeal Aspen Mini White ASP-MW-UNI Condensate Pump Kit, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature

RectorSeal Aspen Mini White ASP-MW-UNI Condensate Pump Kit, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature

RectorSeal Aspen Mini White ASP-MW-UNI Condensate Pump Kit, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature

Manufacturer: CSW Industrials Inc
Brand: RectorSeal®
Part #: 335915
MPN: FP3578/MG
CPN:
Amperage Rating      :      0.17 A
Color      :      White
Cord Size      :      3.25 '
Dimensions      :      7-1/8" L x 4-1/2" H x 2" W
Enclosure Type      :      IPX1
Flow Rate      :      174-192 GPM (0' Head), 72-96 GPM (33' Head)
Frequency Rating      :      50 Hz, 60 Hz
Housing Material      :      ABS
Maximum Feet of Head      :      33 '
Model      :      ASP-MW-UNI
Mounting Type      :      Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir)
Operating Temperature      :      104 °F (Water)
Power Rating      :      16 W
Series      :      Aspen Mini White
Shut-Off Head      :      50 ft
Suction Size      :      5/8" (Accepts Drain Hose)
Temperature Rating      :      104 deg F
Voltage Rating      :      100-250 V

RectorSeal Condensate Pump Kit, Model: Aspen Mini White, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature, 0.17 A, 3.25' Cord Length, 50 Hz, 60 Hz, 7-1/8" L x 4-1/2" H x 2" W Dimensions, IPX1, ABS, White

  • Mounts easily on the wall surface directly below the mini-split evaporator.
  • Universal voltage compatibility (100-250V AC) simplifies wiring.
  • Suitable for air conditioning systems up to 54,000 BTU.
  • Operates quietly with a sound level of 21 dB(A).
  • Snap-on cover and clip-out reservoir allow for straightforward filter maintenance.
  • Includes an integrated 3A NC safety switch for overflow protection.
  • Accepts standard 5/8" drain hose for connection to the evaporator.
  • Features fully potted electronics for resistance to shock, vibration, and moisture.
