| Capillary Length | : | 36 in |
| Connection Size 1 | : | 1/4 in |
| Connection Type 1 | : | SAE Flare Nut |
| Differential Pressure | : | 40 to 150 psi |
| Number of Poles | : | 2 |
| Pressure Rating | : | 100 to 400 psi |
| Product Family | : | O Series |
| Product Type | : | Control |
| Reset Type | : | Auto |
| Switch Action | : | DPST |

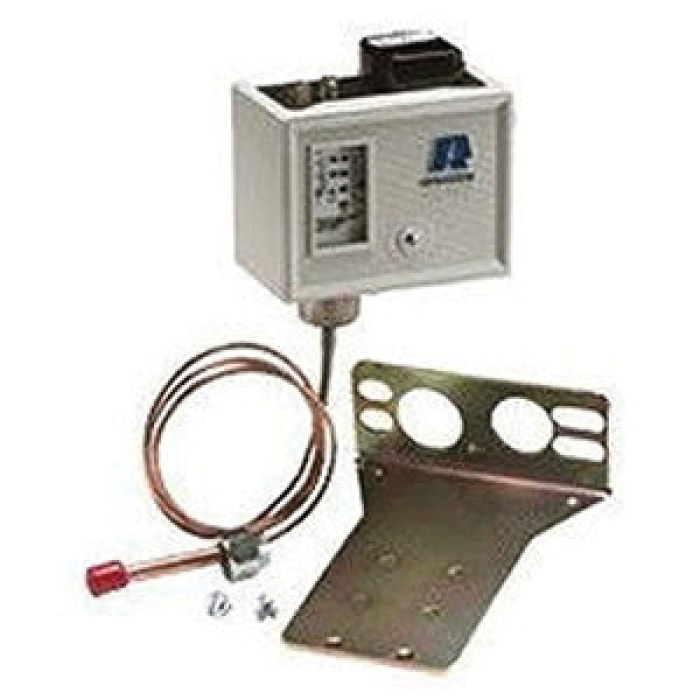

The Ranco® O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.
RANCO® Single High Pressure Control, Auto Reset, 40 to 150 psi Differential Pressure, Connection Size 1: 1/4 in, Connection Type 1: SAE Flare Nut, DPST Switch Action, 36 in Capillary Length, O Series, 2 Poles, 100 to 400 psi
- NEMA 1 enclosure with non-conductive cover
- Front-located captive cover screw
- Large, easy-to-read scale plate
- Super Cap ® capillary protection system
- Universal mounting and compact design
- Screw terminals are raised and fully accessible for easy wiring
- Laser-welded bellows for extended life
- Heavy-duty plated steel frame
- Cap included on all Australia temperature controls
