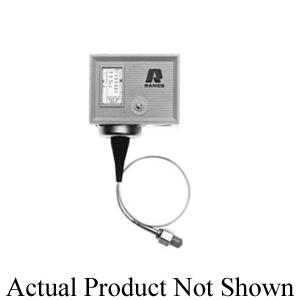

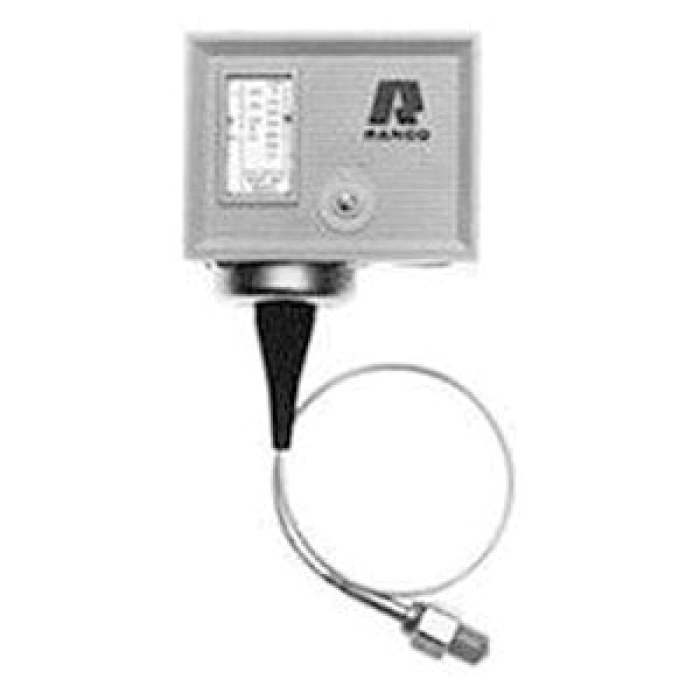

RANCO® O16-624 Single Low Pressure Control, Auto Reset, 5 to 35 psi Differential Pressure, Connection Size 1: 1/4 in
RANCO® O16-624 Single Low Pressure Control, Auto Reset, 5 to 35 psi Differential Pressure, Connection Size 1: 1/4 in
Manufacturer: Robertshaw
Brand: RANCO®
Part #: 96740
MPN: O16-624
CPN:
| Adjustable | : | Yes |
| Capillary Length | : | 36 in |
| Connection Size 1 | : | 1/4 in |
| Connection Type 1 | : | SAE Flare Nut |
| Differential Pressure | : | 5 to 35 psi |
| Number of Poles | : | 1 |
| Pressure Rating | : | 12 inHg to 80 psi |
| Product Family | : | O Series |
| Product Type | : | Control |
| Reset Type | : | Auto |
| Switch Action | : | SPDT |
The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.
RANCO® Single Low Pressure Control, Yes, Auto Reset, 5 to 35 psi Differential Pressure, Connection Size 1: 1/4 in, Connection Type 1: SAE Flare Nut, SPDT Switch Action, 36 in Capillary Length, O Series, 1 Poles, 12 inHg to 80 psi
- Controls available for most refrigerant types
- High-amp rated switch (SPST) design (O10-1402/O10-1483)
- Super Cap ® capillary vibration protection system
- Non-conductive front cover with captive screw
- Adjustable differential and range
- Easy-to-read scale plate. Vibration cone (absorbs and reduces vibration away from brazed joint)
- Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
- The O16-624 control has additional features: Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A
- Cap included on all Australia temperature controls
