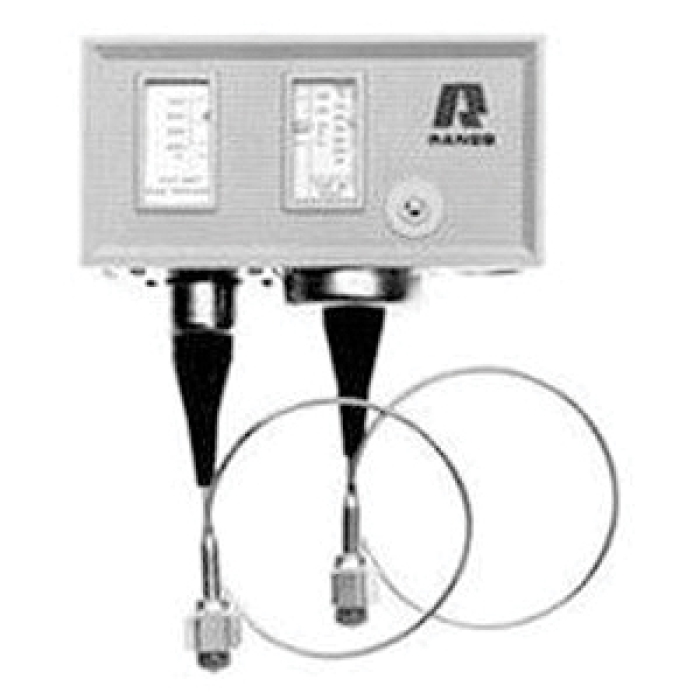

RANCO® O12-1502 Dual Pressure Control, Auto Reset, 70 psi Differential Pressure, Connection Size 1: 1/4 in, 1 Poles
RANCO® O12-1502 Dual Pressure Control, Auto Reset, 70 psi Differential Pressure, Connection Size 1: 1/4 in, 1 Poles
Manufacturer: Robertshaw
Brand: RANCO®
Part #: 89549
MPN: O12-1502
CPN:
| Capillary Length | : | 36 in |
| Connection Size 1 | : | 1/4 in |
| Connection Type 1 | : | SAE Flare Nut |
| Differential Pressure | : | 70 psi |
| Number of Poles | : | 1 |
| Pressure Rating | : | 150 to 450 psi |
| Product Family | : | O Series |
| Product Type | : | Control |
| Reset Type | : | Auto |
| Switch Action | : | SPST |
The Ranco® O Series Dual Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.
RANCO® Dual Pressure Control, Auto Reset, 70 psi Differential Pressure, Connection Size 1: 1/4 in, Connection Type 1: SAE Flare Nut, SPST Switch Action, 36 in Capillary Length, O Series, 1 Poles, 150 to 450 psi
- Convertible feature allows selection of manual or reset function when operating at high pressure (O12 '4833/O12-4834)
- A wide range of high-pressure manual or automatic reset controls can be replaced (O12-4833 or O12 '4834)
- A high-pressure limit is combined with suction pressure sensing to provide temperature control and/or pump down
- High-limit adjustment screw
- Low-pressure differential and range adjusting screw
- Selector screw for manual or automatic
- Reset button
- Low-pressure scale plate
- High-impact plastic cover with center mount screw
- High-pressure scale plate
- Super Cap ® capillary protection system
- Color-coded for easy identification of pressure line
- High-side capillary flare nut (silver)
- Low-side capillary flare nut (brass)
- Cap included on all Australia temperature controls. Optional for all other regions
