Quick-Sling® QSMS1203-N Double Stack Narrow Mini-Split Stand, 600 lb Load, 12 in L, Steel, Powder-Coated, Tan
Quick-Sling® QSMS1203-N Double Stack Narrow Mini-Split Stand, 600 lb Load, 12 in L, Steel, Powder-Coated, Tan
Manufacturer: DiversiTech Corporation
Brand: Quick-Sling®
Part #: 429908
MPN: QSMS1203-N
CPN:
| Adjustable | : | Yes |
| Color | : | Tan |
| Finish | : | Powder-Coated |
| Function Type | : | Mini-Split Stand |
| Installation / Mounting Type | : | Concrete Pad, Roof |
| Length | : | 12 in |
| Load Capacity | : | 600 lb |
| Material | : | Steel |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 36 in |
| Packaged Height | : | 56 in |
| Packaged Width | : | 4 in |
| Product Type | : | Mini-Split Stand |
| Shipping Weight | : | 35 lb |

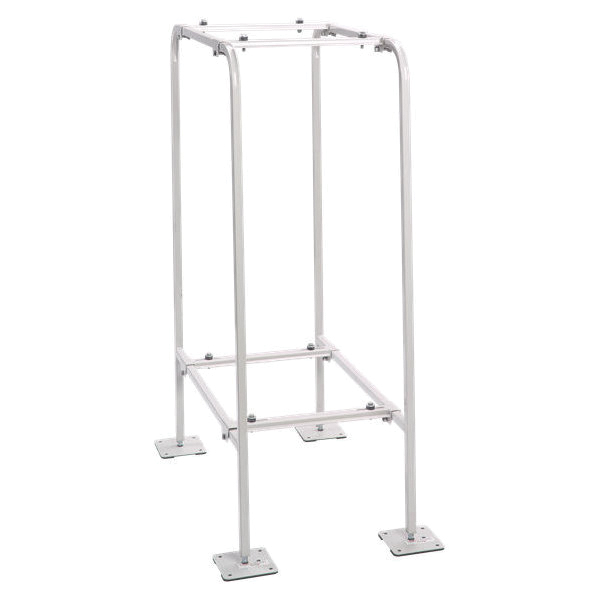

The Quick-Sling® QSMS1203-N is a 12 in. (height) double stack mini split condensing unit stand that mounts 2 (narrow) single fan units one above the other. This saves space by allowing 2 systems to only take up the foot print of a single unit. The offset mounting arms allow heat pumps to be staggered so top unit does not drip on bottom.
Quick-Sling® Double Stack Narrow Mini-Split Stand, 600 lb Load, 12 in Length, Steel, Powder-Coated, Tan, Concrete Pad, Roof Installation / Mounting, Adjustable: Yes
- Made from strong 14-gauge square tubing
- 600 lbs. total capacity: 400 lbs. bottom shelf, 200 lbs. top shelf
- Double stack stand allows two systems to only take up the foot print/space of a single unit
- The offset mounting arms allow heat pumps to be staggered so top unit does not drip on bottom
- Powder coated finish for outdoor use
- Each 6 in. x 6 in. foot is made from 11 gauge steel and is adjustable up to 1.25 in. in height
- 50 Durometer rubber pads are pre-installed on each foot to reduce vibration and noise
- Each stand comes with "hat channel" mounting arms which add strength and dissipate sound and vibration
