| Accuracy | : | +/-1 deg F |
| Ambient Temperature Rating | : | 32 to 105 deg F |
| Amperage Rating | : | 1.5 A |
| Battery Type | : | AA Alkaline |
| Depth | : | 1.1 in |
| Differential Temperature | : | 0.2 to 20 deg F |
| Display Type | : | Blue Backlight |
| Function Type | : | Thermostat |
| Height | : | 4.4 in |
| Humidity Rating | : | 90 % |
| Installation / Mounting Type | : | Junction Box/Wall |
| Number of Stages | : | 1H/1C |
| Power Source | : | Battery, Hardwired |
| Programmability | : | 7 days, 5-1-1 days |
| Terminal Designations | : | RC, RH, C, Y, W/E, G, O, B |
| Voltage Rating | : | 18 to 30 V |
| Width | : | 4.7 in |

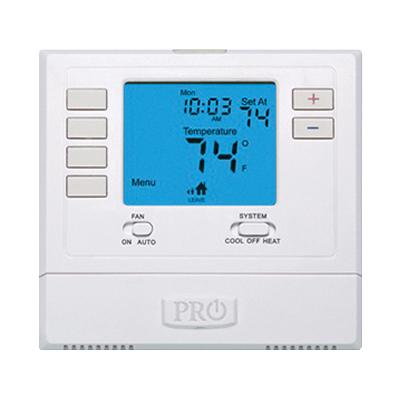

PRO1® Programmable Thermostat, 18 to 30 V, 1H/1C Stages, Battery, Hardwired Power Source, AA Alkaline Battery, Blue Backlight Display, 32 to 105 deg F Ambient Temperature Rating, 0.2 to 20 deg F Differential Temperature, +/-1 deg F Accuracy, 90 % Humidity Rating, 1.5 A, RC, RH, C, Y, W/E, G, O, B Terminal Designations, Junction Box/Wall Installation / Mounting, 4.4 in Height, 4.7 in Width, 1.1 in Depth, Thermostat Function Type
- 4 sq. inch display
- Blue backlight
- Glow in the dark light button
- Easy access battery compartment
- Electric or Gas configurable
- Seperate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustments
- 5 minute compressor delay protection (selectable on or off)
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- Battery or 24v power
