| Hydrant Type | : | Freezeless |
| Inlet Connection Size | : | 1/2 x 1/2 in |
| Inlet Connection Type | : | MPT x Sweat |
| Lead-Free Compliant | : | No |
| Length | : | 6-9/16 in |
| Maximum Wall Thickness | : | 4 in |
| Maximum Working Pressure | : | 125 psi |
| Operating Temperature Rating | : | 140 deg F |
| Product Family | : | Diamond, 400 Series |

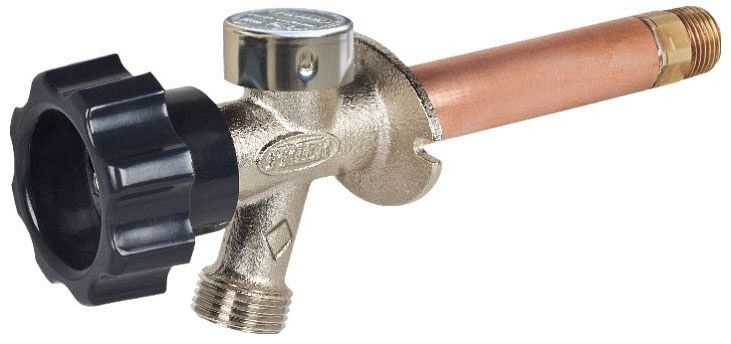

PRIER 400 Series provides a year round source of water in areas that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. The PRIER 400 Series features a half-turn design for years of easy operation. The PRIER 400 Series has all the characteristics of the proven 300 Series Wall Hydrant, with the added protection of a vacuum breaker and backflow preventer. It is available from stock in lengths close coupled to 14".
PRIER® Anti-Siphon Wall Hydrant, Freezeless Hydrant, 1/2 x 1/2 in Inlet, MPT x Sweat Inlet, 6-9/16 in L, 4 in Max Wall Thickness, 140 deg F, 125 psi Max Working Pressure, No, Diamond, 400 Series
- Easy half-turn operation
- Integral cast flange with built-in drainage pitch
- Wide screw holes easily secure mounting screws
- Solid brass body and seat
- Satin nickel plated body maintains attractive finish
- Stainless steel screws
- Easy grip polycarbonate operating handle
- EPDM backflow preventer
- AFG teflon with graphite packing for easy maintenance
- Each valve air-tested at factory for leak-free quality
- Spout aligning mark with manufacturer's date code
