| Amperage Rating | : | 40 A |
| Frequency | : | 60 Hz |
| Function Type | : | Timer |
| Product Family | : | 8000 Series |
| Product Type | : | Timer |
| Voltage Rating | : | 120-240 V |

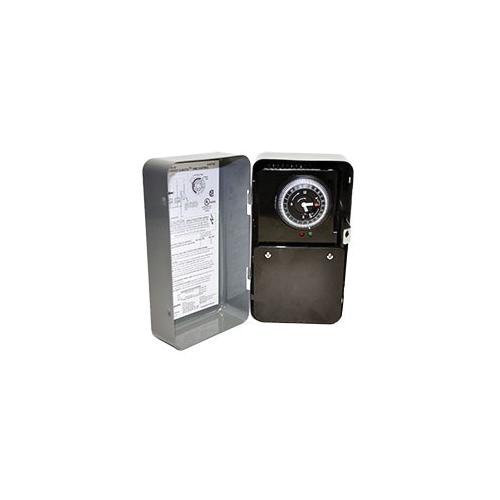

The Paragon ® 8000 Series Auto Voltage Defrost Timer is designed for commercial freezers and refrigerators. Paragon Defrost Controls have provided reliable automatic defrost capability for decades. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle. This all-in-one auto voltage defrost timer replaces over 40 competitive voltage-specific mechanical defrost timers, eliminating the need for a separate short cycle timer and single-phase voltage monitor. The 8145-AV will become a mainstay in any contractor's truck. The 8145-AV reduces installation time, and minimizes the number of SKUs to stock.
PARAGON® Auto Voltage Defrost Timer, 120-240 V, 40 A, 60 Hz Frequency, Product Family: 8000 Series, Timer Function Type
- Replaces over 40 competitive models
- Auto Voltage automatically adjusts for 120-240V AC
- Compressor contacts 3HP
- Heater/Fan contacts 2HP
- LED indicators for defrost and refrigeration cycles
- Built-in permanent housing protects components from damage
- Mounts into existing Paragon enclosures, no tools required
- Real time clock face for easy accurate settings
- Defrost times programmable in 15-minute intervals with captive trippers
- Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp
