| AFUE | : | 93.7 % |
| BTU Heating Input Rating | : | 55 to 275 MBtu/hr |
| BTU Heating Output Rating | : | 251 MBtu/hr |
| Condensing | : | Yes |
| Depth | : | 21-5/8 in |
| Energy Star Certified | : | Yes |
| Fuel Type | : | Liquid Propane, Natural Gas |
| Gas Connection Size | : | 1/2 in |
| Height | : | 39-7/8 in |
| Ignition Type | : | Direct Spark |
| Inlet Connection Size | : | 1-1/4 in |
| Installation / Mounting Type | : | Floor, Wall |
| Media / Fluid Type | : | Water |
| Model Number | : | LX300 |
| Outlet Connection Size | : | 1-1/4 in |
| Phase | : | 1 ph |
| Product Family | : | Trinity LX Series |
| Product Weight | : | 180 lb |
| Voltage Rating | : | 120 V |
| Width | : | 17 in |

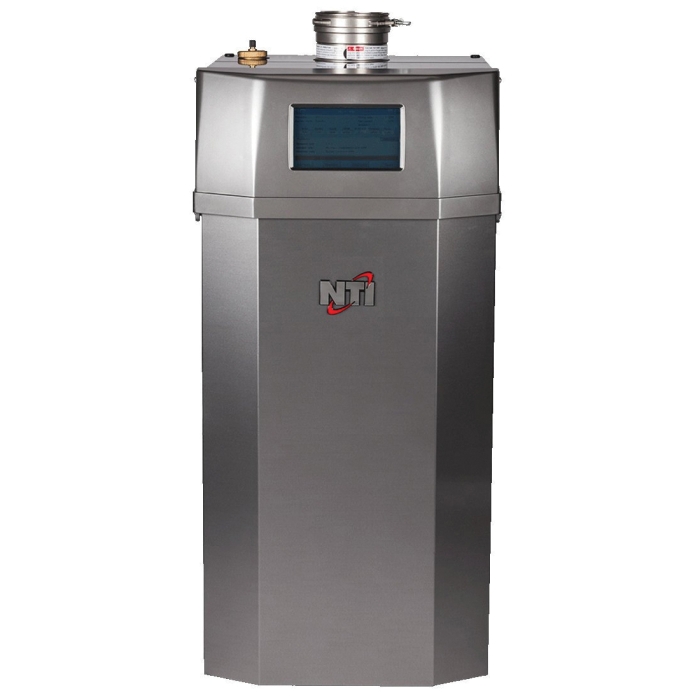

For light to heavy commercial applications, the Lx is the ideal option, with its easy to clean, high power stainless steel heat exchanger. The Lx Series boilers are designed for floor standing installation and can be also mounted wall-hung up to 399 MBH. Its easy to access electronic board and well accessible components make it easy service and regular maintenance. Cascade management and other outstanding programming features can be easily controlled by the intuitive touch screen display.
NTI Gas Fired Boiler, Liquid Propane, Natural Gas Fuel, 55 to 275 MBtu/hr Heating Input, 251 MBtu/hr BTU Heating Output, 93.7 % AFUE, Condensing: Yes, 1 ph Phase, 120 V, Yes, Direct Spark Ignition, Water Media / Fluid, 1/2 in Gas Connection, 1-1/4 in Inlet Connection, 1-1/4 in Outlet Connection, Floor, Wall Installation / Mounting, 39-7/8 in Height, 17 in Width, 21-5/8 in Depth, Trinity LX Series
- Touch screen intuitive display
- Easy cleaning stainless steel heat exchanger
- Wall hung kit included for Lx200-400
- High power sizes up to 800 MPH
- Easy access to the display and internal components
- Advanced cascade settings
- Vents in PVC, CPVC or Poly Propylene
