NIBCO® PressG™ 9059150HPC 90 deg Elbow, Elbow Fitting, Connection Size 1: 3/4 in, Connection Type 1: Fitting, Copper
NIBCO® PressG™ 9059150HPC 90 deg Elbow, Elbow Fitting, Connection Size 1: 3/4 in, Connection Type 1: Fitting, Copper
| ASTM Specifications | : | Yes |
| Angle | : | 90 deg |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | Press |
| Fitting Type | : | Elbow |
| Material Construction | : | Wrot Copper |
| Material Grade | : | ASTM B75 UNS C12200 |
| Material | : | Copper |
| Maximum Working Pressure | : | 200 psi |
| Operating Temperature Rating | : | -40 to 180 deg F |
| Package Quantity | : | 10 Bag |
| Product Family | : | PressG™ PCH607-2 Series |
| Product Weight | : | 0.219 lb |
| Reducing | : | No |

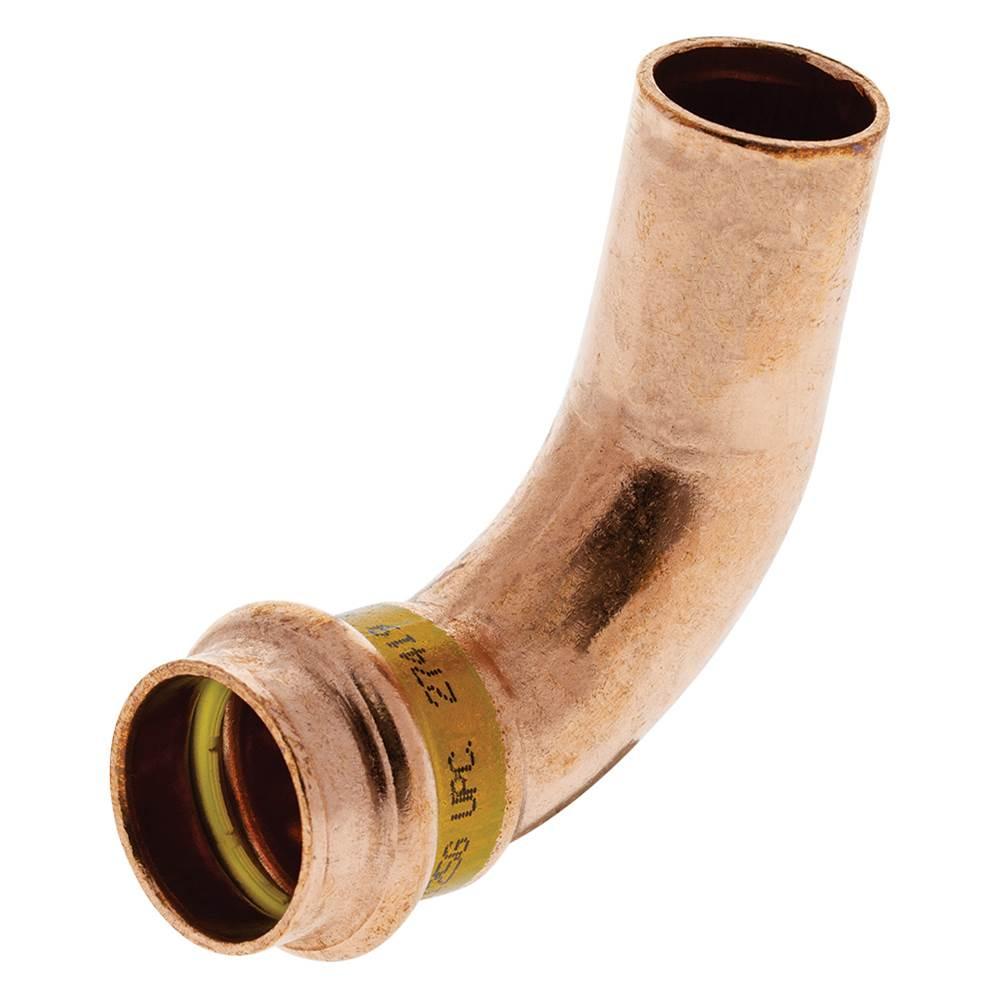

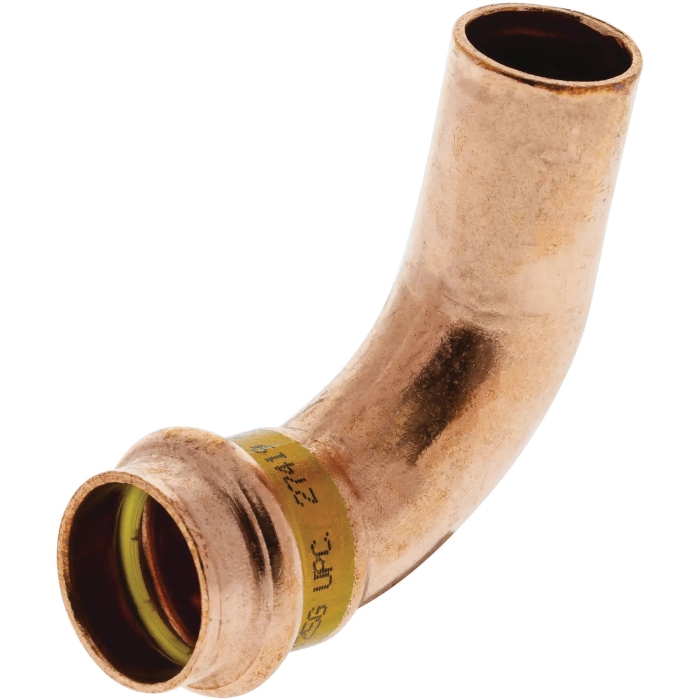

The NIBCO® PressG™ copper 90-degree fitting elbow features an inboard bead and yellow HNBR O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder or flux. The elbow has a male fitting end and a press connection. The fitting provides a method of changing the pipeline direction by 90 degrees between a press connection and fitting connection which can either be soldered or pressed.
NIBCO® 90 deg Elbow, Elbow Fitting, Connection Size 1: 3/4 in, Connection Type 1: Fitting, No, 90 deg Angle, Connection Size 2: 3/4 in, Connection Type 2: Press, Copper, ASTM B75 UNS C12200 Material Grade, Material Construction: Wrot Copper, Yes, 200 psi Maximum Working Pressure, -40 to 180 deg F, PressG™ PCH607-2 Series
