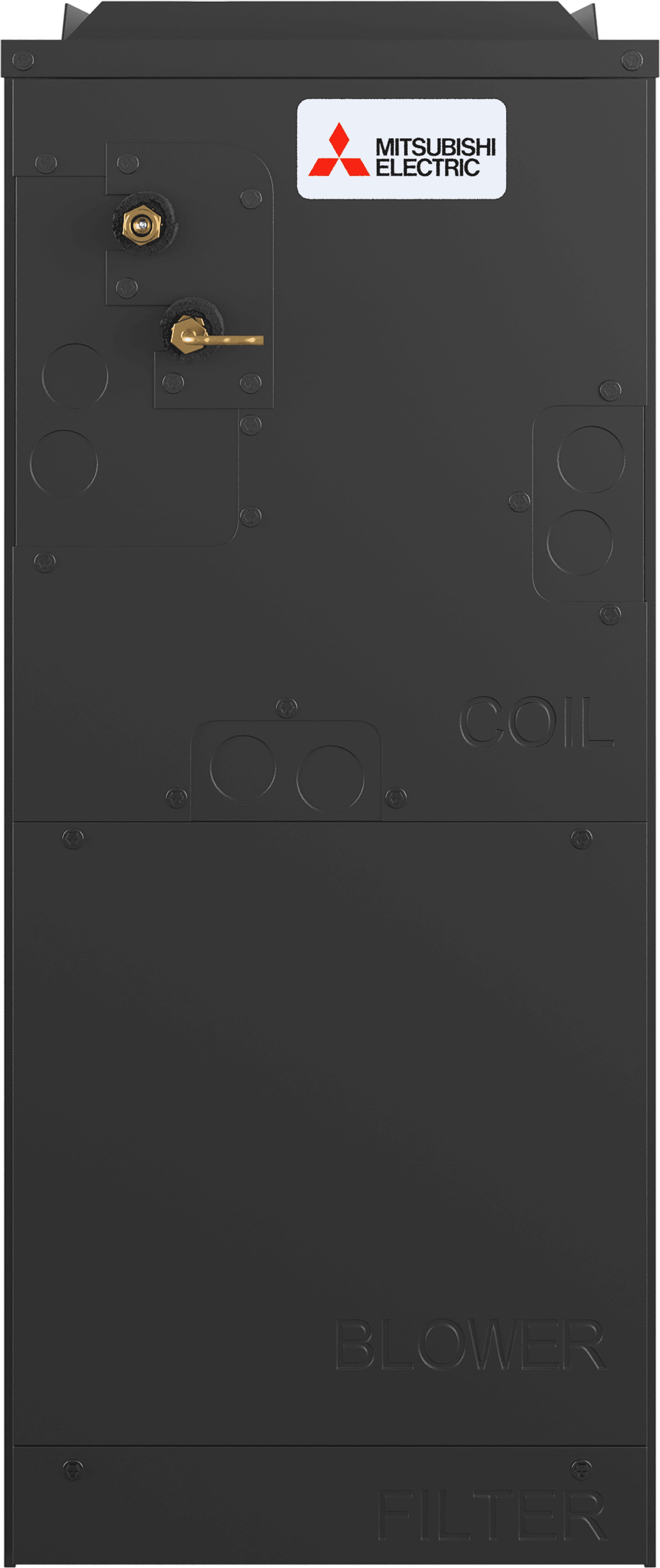

Mitsubishi Electric Trane® SVZ-AP30NL M-Series 2.5 Ton Air Handler - R-454B, 208/230V, 33 In W, Upflow/ Downflow/ Horizontal/ Multi-Position
Mitsubishi Electric Trane® SVZ-AP30NL M-Series 2.5 Ton Air Handler - R-454B, 208/230V, 33 In W, Upflow/ Downflow/ Horizontal/ Multi-Position

Mitsubishi Electric Trane® SVZ-AP30NL M-Series 2.5 Ton Air Handler - R-454B, 208/230V, 33 In W, Upflow/ Downflow/ Horizontal/ Multi-Position

Mitsubishi Electric Trane® SVZ-AP30NL M-Series 2.5 Ton Air Handler - R-454B, 208/230V, 33 In W, Upflow/ Downflow/ Horizontal/ Multi-Position

Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 442124
MPN: SVZ-AP30NL
CPN:
Air Flow Direction      :      Upflow~Downflow~Horizontal~Multi-Position
BTU Cooling Rating (Custom)      :      24,000 BTU/h
BTU Cooling Rating      :      27,000 BTU/h
CFM Airflow (Custom)      :      600~700~800~900 CFM
CFM Airflow      :      613-875 CFM
Depth      :      13 in
Filter Size      :      20 x 20 in
Height      :      35 in
Integrated Mitigation Control      :      Yes
Liquid Line Size      :      3/8 in
Max Breaker Size      :      15 A
Model Number      :      SVZ-AP
Motor Type      :      ECM
Number of Speeds      :      3
Packaged Depth      :      28.688 in
Packaged Height      :      48.063 in
Packaged Width      :      22 in
Phase      :      1 ph
Product Family      :      M-Series
Product Weight      :      122 lbs
Refrigerant Type      :      R-454B
Shipping Weight      :      141 lbs
Suction Line Size      :      5/8 in
Tonnage (Custom)      :      2.5 Ton
Tonnage      :      2.5 Ton
Voltage Rating      :      208/230 V
Width      :      33 in
