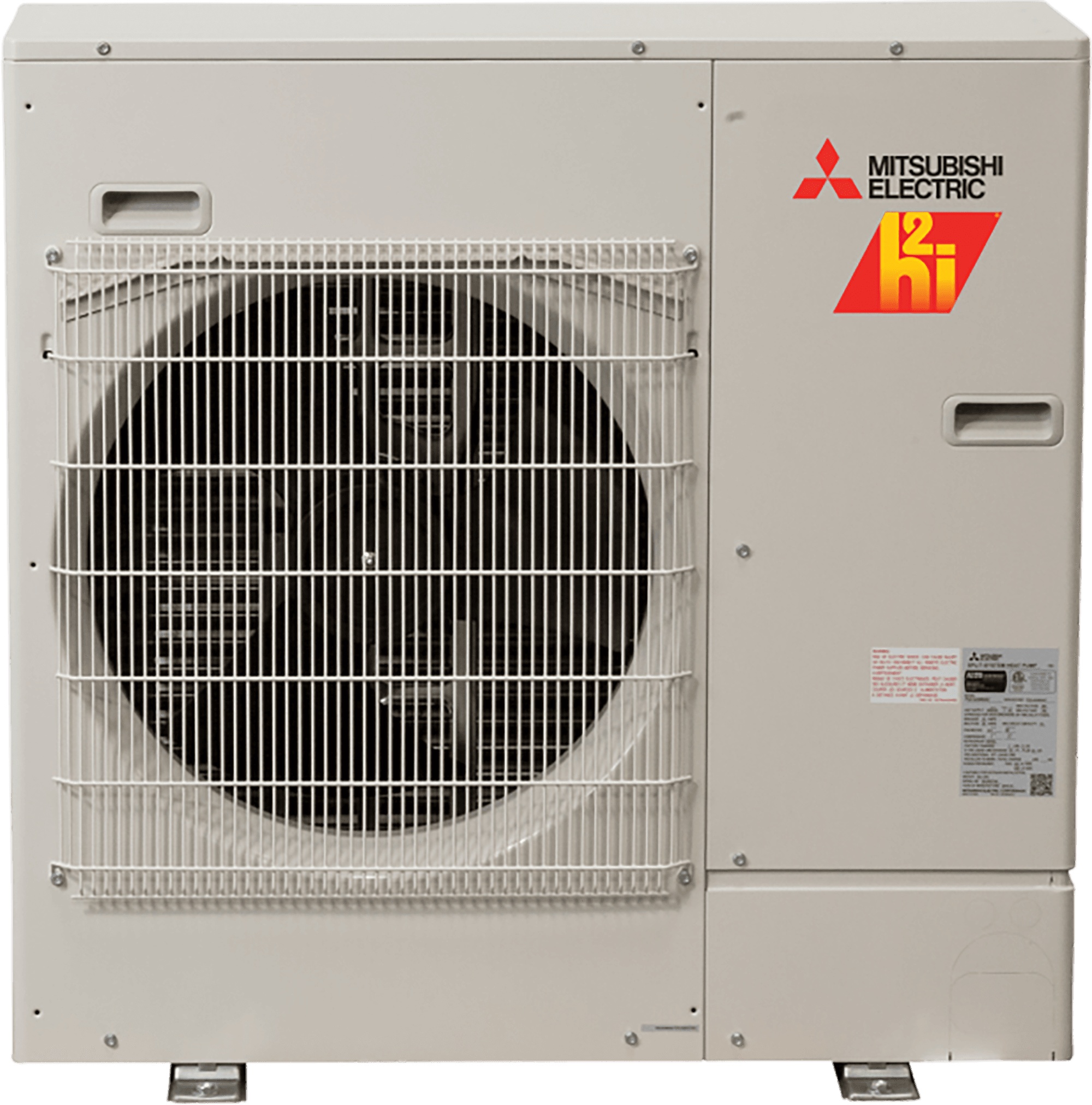

Mitsubishi Electric Trane® SUZ-AA09NLHZ M-Series 0.75 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 Phase, 17.0 Seer, 10.0 Hspf
Mitsubishi Electric Trane® SUZ-AA09NLHZ M-Series 0.75 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 Phase, 17.0 Seer, 10.0 Hspf
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 442106
MPN: SUZ-AA09NLHZ
CPN:
| BTU Cooling Rating (Custom) | : | 6,000~12,000 BTU/h |
| BTU Cooling Rating | : | 5,000-9,000 BTU/h |
| BTU Heating Rating (Custom) | : | 6,000~12,000~18,000 BTU/h |
| BTU Heating Rating | : | 8,200-15,000 BTU/h |
| Compressor Type | : | Rotary |
| Depth | : | 13 in |
| EER (Custom) | : | 12.0 |
| EER | : | 12.5 |
| HSPF (Custom) | : | 10.0 |
| HSPF | : | 10.0 |
| Height | : | 34.625 in |
| Liquid Line Size | : | 1/4 in |
| Max Breaker Size | : | 25 A |
| Model Number | : | SUZ-AA |
| Number of Stages | : | Inverter |
| Number of Zones | : | 1 |
| Packaged Depth | : | 16.563 in |
| Packaged Height | : | 39 in |
| Packaged Width | : | 38.625 in |
| Phase | : | 1 ph |
| Product Family | : | M-Series |
| Product Type | : | Heat Pump |
| Product Weight | : | 115 lbs |
| Refrigerant Type | : | R-454B |
| SEER (Custom) | : | 17.0 |
| SEER | : | 17.0 |
| Shipping Weight | : | 133 lbs |
| Sound Level | : | 55 dB(A) |
| Suction Line Size | : | 3/8 in |
| Tonnage (Custom) | : | 1.0 Ton |
| Tonnage | : | 0.75 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.063 in |
