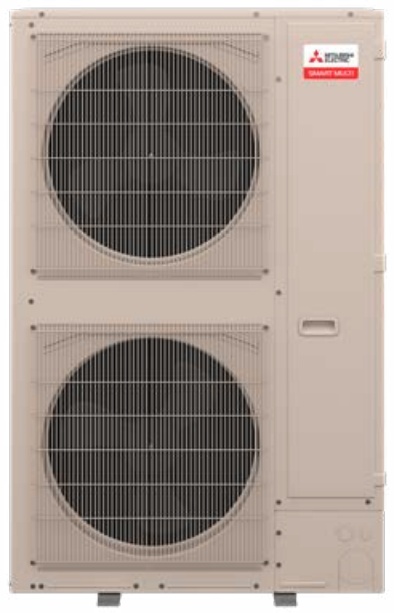

Mitsubishi Electric Trane® MXZ-SM36NL M-Series 3.0 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 11 Zones, 208/230V, 1 Phase, 18.2-23.0 Seer2, 10.0-11.0 Hspf2
Mitsubishi Electric Trane® MXZ-SM36NL M-Series 3.0 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 11 Zones, 208/230V, 1 Phase, 18.2-23.0 Seer2, 10.0-11.0 Hspf2
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 441736
MPN: MXZ-SM36NL
CPN:
| BTU Cooling Rating (Custom) | : | 36,000 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| BTU Heating Rating (Custom) | : | 42,000 BTU/h |
| BTU Heating Rating | : | 41,000 BTU/h |
| Compressor Type | : | Rotary |
| Depth | : | 13 in |
| EER2 (Custom) | : | 10.0~11.0~12.0~13.0~14.0 |
| EER2 | : | 10.0-14.1 |
| ENERGY STAR Certified | : | Yes |
| HSPF2 (Custom) | : | 10.0~11.0 |
| HSPF2 | : | 10.0-11.0 |
| Height | : | 52.688 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 70 A |
| Model Number | : | MXZ-SM |
| Number of Stages | : | Inverter |
| Number of Zones | : | 11 |
| Packaged Depth | : | 18 in |
| Packaged Height | : | 58.313 in |
| Packaged Width | : | 43 in |
| Phase | : | 1 ph |
| Product Family | : | M-Series |
| Product Type | : | Heat Pump |
| Product Weight | : | 250 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 (Custom) | : | 18.0~19.0~20.0~21.0~22.0~23.0 |
| SEER2 | : | 18.2-23.0 |
| Shipping Weight | : | 276 lbs |
| Suction Line Size | : | 5/8 in |
| Tonnage (Custom) | : | 3.0 Ton |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 41.344 in |
