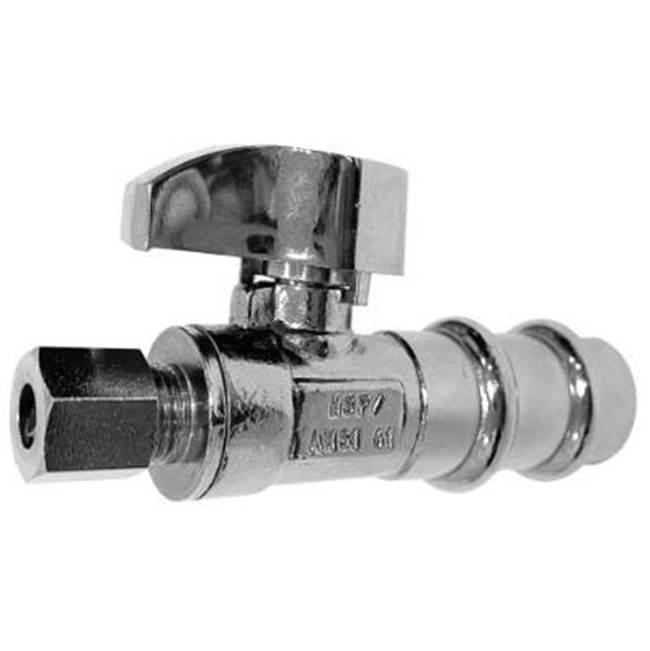

Matco-Norca™ 26-1016PLF 1/4 Turn Straight Supply Valve, 1/2 in Inlet, Press Inlet, 1/4 in Outlet, Compression Outlet
Matco-Norca™ 26-1016PLF 1/4 Turn Straight Supply Valve, 1/2 in Inlet, Press Inlet, 1/4 in Outlet, Compression Outlet
| Body Material | : | Brass |
| Depth | : | 2.782 in |
| Function Type | : | Valve |
| Inlet Connection Size | : | 1/2 in |
| Inlet Connection Type | : | Press |
| Lead-Free Compliant | : | Yes |
| Maximum Working Pressure | : | 125 psi |
| NSF Specifications | : | Yes |
| Operating Temperature Rating | : | 32 to 160 deg F |
| Outlet Connection Size | : | 1/4 in |
| Outlet Connection Type | : | Compression |
| Valve Type | : | Straight |
The 26-1016PLF Lead-Free 1/4 Turn Straight Supply Valve is crafted from chrome-plated brass, ensuring durability and safety in plumbing applications. With a one-piece body design and certification from cUPC and NSF/ANSI 61, it guarantees reliability and compliance with industry standards. Operating at a maximum pressure of 125 PSI and suitable for temperatures ranging from 32 deg F to 160 deg F, it provides efficient control and performance in various plumbing systems requiring 1/2" press and 1/4" compression fittings.
Matco-Norca™ 1/4 Turn Straight Supply Valve, 1/2 in Inlet, Press Inlet, 1/4 in Outlet, Compression Outlet, Straight Valve, Brass Body, 125 psi Max Working Pressure, 32 to 160 deg F Operating Temperature, NSF Specifications: Yes, Lead-Free Compliant: Yes, 2.782 in D, Valve Function Type
- One Piece Body
