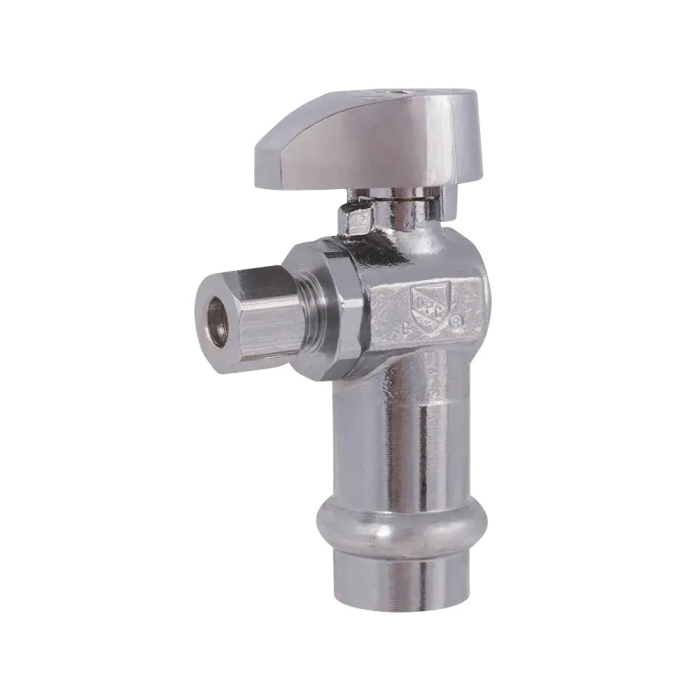

Matco-Norca™ 26-1015PLF 1/4 Turn Angle Supply Stop Valve, 1/2 in Inlet, Press Inlet, 1/4 in Outlet, Compression Outlet
Matco-Norca™ 26-1015PLF 1/4 Turn Angle Supply Stop Valve, 1/2 in Inlet, Press Inlet, 1/4 in Outlet, Compression Outlet
| Body Material | : | Brass |
| Depth | : | 2.795 in |
| Function Type | : | Valve |
| Inlet Connection Size | : | 1/2 in |
| Inlet Connection Type | : | Press |
| Lead-Free Compliant | : | Yes |
| Maximum Working Pressure | : | 125 psi |
| NSF Specifications | : | Yes |
| Operating Temperature Rating | : | 32 to 160 deg F |
| Outlet Connection Size | : | 1/4 in |
| Outlet Connection Type | : | Compression |
| Valve Type | : | Angle |
The 26-1015PLF Lead-Free 1/4 Turn Angle Supply Valve features a 1/2" PRESS inlet and a 1/4" OD compression outlet, ensuring secure connections for plumbing systems. Crafted from chrome-plated lead-free brass and certified by cUPC and NSF/ANSI 61, it guarantees durability and safety under pressures up to 125 PSI and temperatures ranging from 32 deg F to 160 deg F, offering reliable performance in various environments.
Matco-Norca™ 1/4 Turn Angle Supply Stop Valve, 1/2 in Inlet, Press Inlet, 1/4 in Outlet, Compression Outlet, Angle Valve, Brass Body, 125 psi Max Working Pressure, 32 to 160 deg F Operating Temperature, NSF Specifications: Yes, Lead-Free Compliant: Yes, 2.795 in D, Valve Function Type
- One Piece Body
- Double O-Ring Design
