| Contact Configuration | : | SPDT |
| Control Voltage | : | 24/120 V |
| Frequency | : | 50/60 Hz |
| Function Type | : | Center |
| Number of Poles | : | 1 |
| Product Family | : | 240 Series |
| Product Type | : | Center |
| Switching Current | : | 6.9/13.8/41.4/82.8 A |
| Switching Voltage | : | 120/240 V |
| UL Listed | : | Yes |
| VA Rating | : | 40 VA |

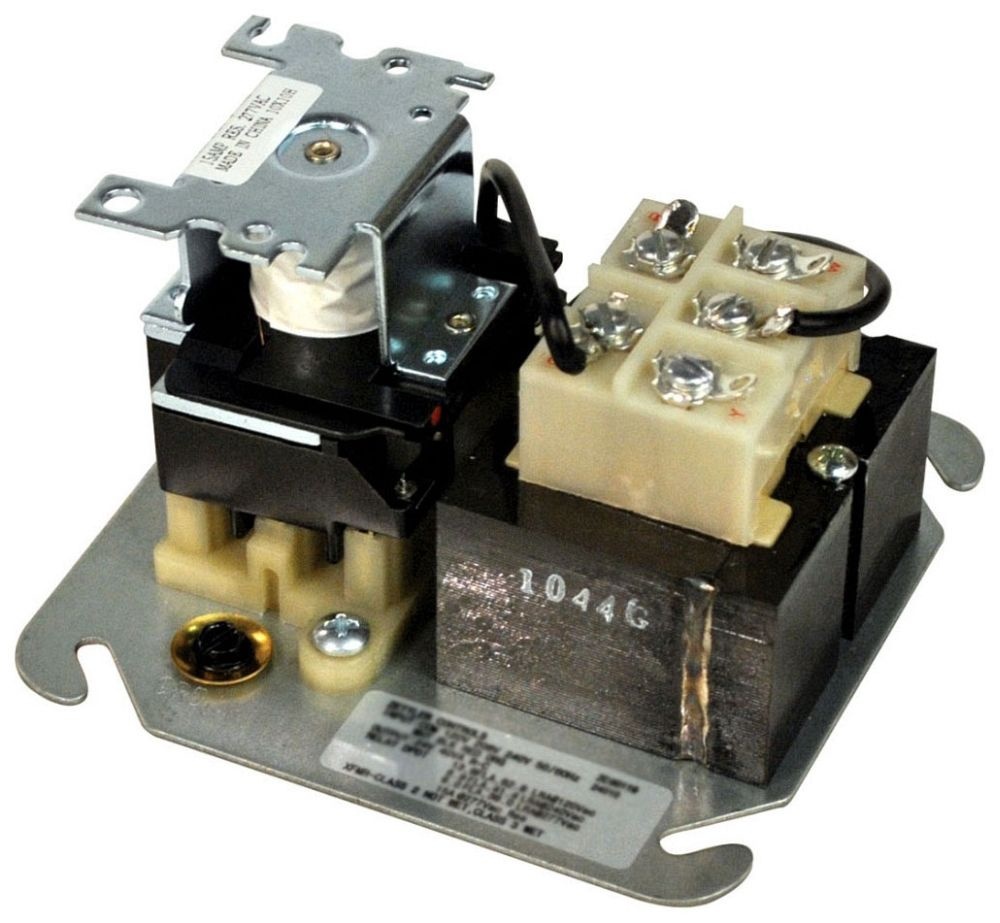

MARS series 240 fan centers provide convenient low voltage control of one and two speed fan motors and auxiliary circuits in heating, cooling, or heating/cooling applications. Each MARS fan center is a reliable, compact unit consisting of a 24 volt control transformer and a plug-in switching relay mounted on a 4" square electrical junction box cover. All line voltage connections are made inside the box with color coded pre-stripped leads. Low voltage connections are made at a convenient terminal board mounted to the transformer.
Mars® Fan Center, Center, 24/120 V Control, 1 -Pole, SPDT, 120/240 V Switching Voltage, 6.9/13.8/41.4/82.8 A Switching Current, 50/60 Hz, 40 VA VA, Yes, 240 Series, Center
- Provides low voltage control
- Compact, Reliable
- 24V control transformer & plug-in switching relay
- Mounted on 4 in. electrical junction box cover
- UL 1585 40 VA Transformer
