| Depth | : | 13.7 in |
| For Duct Size | : | 8-1/2 in H x 34 in W |
| Height | : | 10.4 in |
| Number of Outlets | : | 3 |
| Product Family | : | EasyPlenum |
| Product Type | : | Plenum |
| Width | : | 39.4 in |

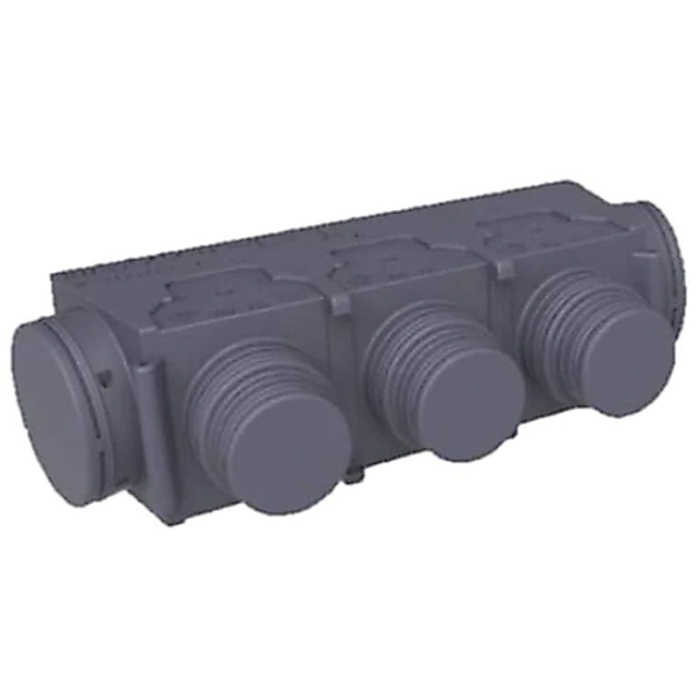

MarketAir Universal Plenum, 39.4 in Width, 10.4 in Height, 13.7 in Depth, For Duct Size: 8-1/2 in H x 34 in W, 3 Outlets, EasyPlenum
- Injection molded from light weight sintered polystyrene, No insulation required
- Rear inlet opening adjusts easily to suit any size blower outlet on the air handler
- Conforms to European Common Market fire resistance norms, Class E
- 2 sizes, each with multiple outlet configurations to suit any combination of duct sizes
- Zero leakage
- Very low thermal conductivity plus integral vapor barrier eliminates sweating
- Dual size front collars provide 5"/6"or 6"/8"connections for dampers, rigid duct or flexduct
- 2 side collars, each 6"/8"provided if bypass dampers are required
- Integral molded hanger receptacles permit easy installation with threaded rod
- Operating temperature range: -22 deg F to194 deg F
