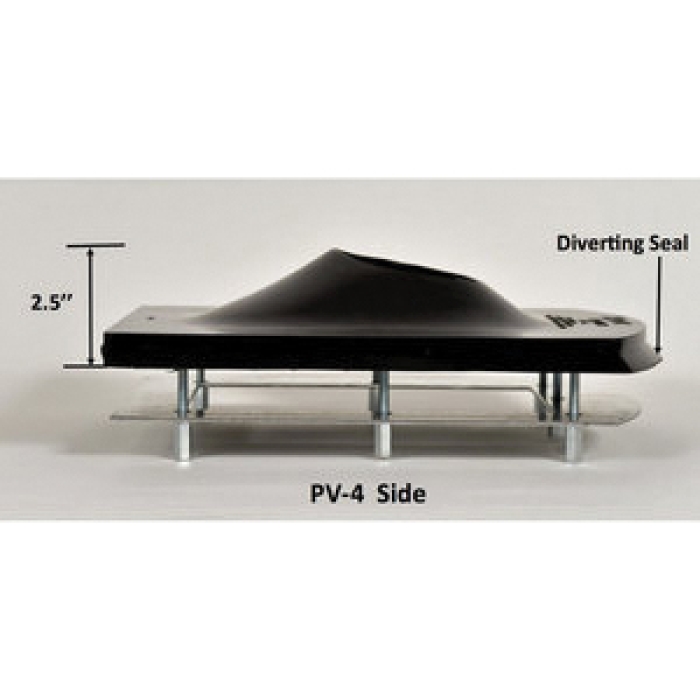

Kozy Kollar PV-4 Roof Flashing Kit, For Pipe Size: 4 in, EPDM, 12-3/4 in Base Length, 9-1/4 in Base Width
Kozy Kollar PV-4 Roof Flashing Kit, For Pipe Size: 4 in, EPDM, 12-3/4 in Base Length, 9-1/4 in Base Width
Manufacturer: Kozy Kollar Manufacturing Inc
Brand: Kozy Kollar
Part #: 228081
MPN: PV-4
CPN:
| Base Length | : | 12-3/4 in |
| Base Width | : | 9-1/4 in |
| For Pipe Size | : | 4 in |
| Height | : | 2-1/2 in |
| Material | : | EPDM |
| Roof Pitch | : | 1/12 to 12/12 |
Kozy Kollar Roof Flashing Kit, For Pipe Size: 4 in, EPDM, 12-3/4 in Base Length, 9-1/4 in Base Width, 2-1/2 in Height, 1/12 to 12/12 Roof Pitch
- 4'' Kozy Kollar EPDM rubber roof flange with heat resistance to 180 degrees Fahrenheit. Molded around a .125 steel Main Fame with seven casehardened 1⁄4-20 female standoffs installed
- 0.105 in plated sub frame
- Seven 1/4-20 x 2-1/2 in plated studs
- Seven 1/4-20 x 7/8 in plated couplings torqued to 3 foot pounds
- 1.5 oz tube of Permatex 2-A
- Roof Slope - 1/12 pitch to 12/12 pitch
- Allowable Roof materials: three tab conventional shingles, architectural shingle, metal roof with solid substrate, and rolled roofing with solid substrate
