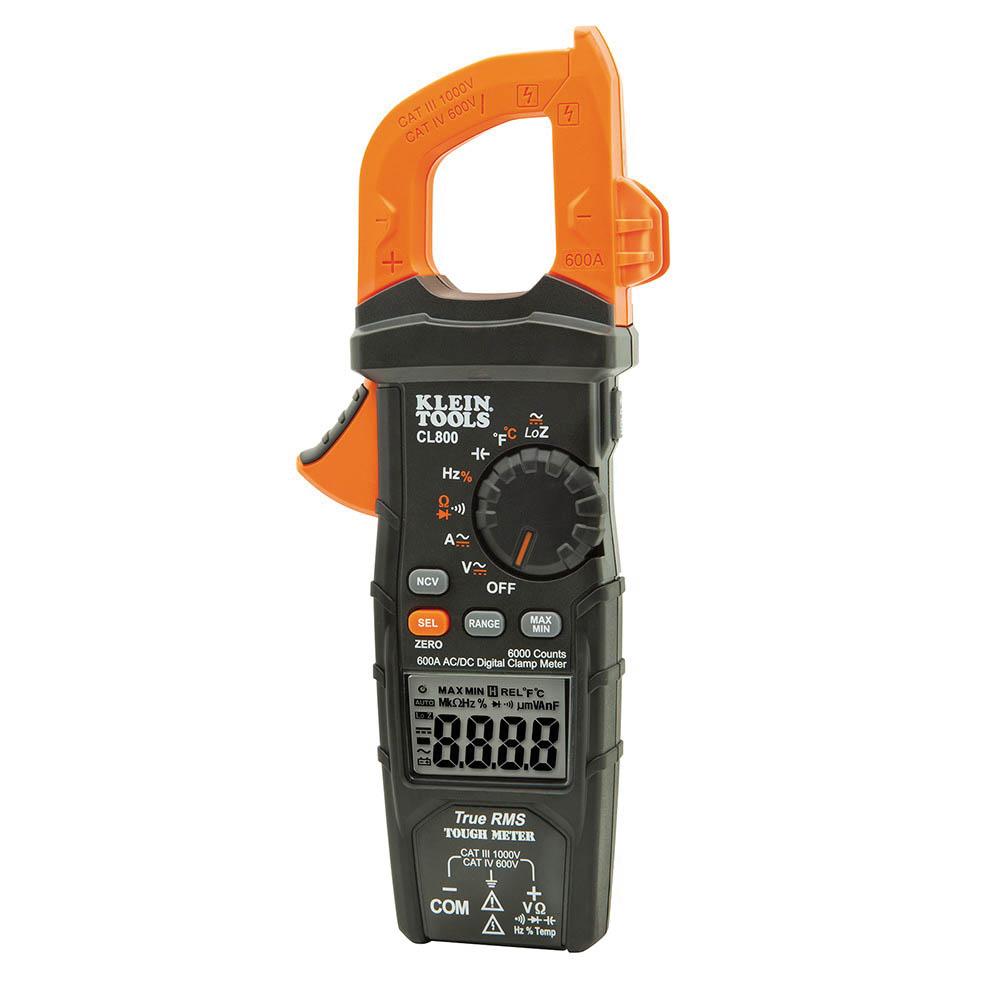

KLEIN TOOLS® CL800 AC Auto-Range TRMS Digital Clamp Meter, LCD Display, Battery, 1.38 in Jaw, Display Counts: 6000
KLEIN TOOLS® CL800 AC Auto-Range TRMS Digital Clamp Meter, LCD Display, Battery, 1.38 in Jaw, Display Counts: 6000
| AC Amps Range / Resolution | : | 600 A |
| Capacitance Range / Resolution | : | 6000 uF |
| DC Amps Range / Resolution | : | 600 A |
| Depth | : | 9.09 in |
| Display Counts | : | 6000 |
| Display Type | : | LCD |
| Height | : | 1.55 in |
| Jaw Capacity | : | 1.38 in |
| Operating Temperature Rating | : | -14 to 1000 deg F |
| Power Source | : | Battery |
| Product Type | : | Meter |
| Resistance Range / Resolution | : | 60 mOhm |
| VAC Measurement Range / Resolution | : | 600 V |
| VDC Measurement Range / Resolution | : | 600 V |
| Width | : | 3.81 in |
Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
KLEIN TOOLS® AC Auto-Range TRMS Digital Clamp Meter, Meter, LCD Display, Battery, 1.38 in Jaw, Display Counts 6000, VDC Measurement Range / Resolution 600 V, VAC Measurement Range / Resolution 600 V, Resistance Range / Resolution 60 mOhm, 1.55 in H, 3.81 in W, 9.09 in D, Capacitance Range / Resolution 6000 uF, AC Amps Range / Resolution 600 A, DC Amps Range / Resolution 600 A, -14 to 1000 deg F
- Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Thermocouple probe measures temperature
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Built to withstand a 6.6-Foot (2m) drop
- Low battery indicator and easily accessible battery compartment
- Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
- Operating altitude to 6562-Foot (2000m)
- Includes carrying pouch, test leads, thermocouple with adapter and batteries
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
