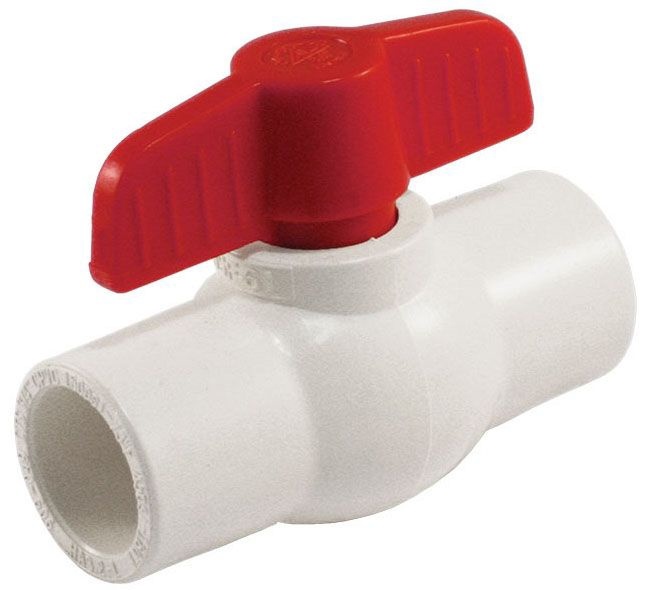

Jomar Valve® 210-603 Ball Valve, 1/2 in, 1/2 in, Solvent, 1/2 in, Solvent, CPVC Body, 150 psi Max Working Pressure
Jomar Valve® 210-603 Ball Valve, 1/2 in, 1/2 in, Solvent, 1/2 in, Solvent, CPVC Body, 150 psi Max Working Pressure
Manufacturer: JOMAR VALVE
Brand: Jomar Valve®
Part #: 296533
MPN: 210-603
CPN:
| ASTM Specifications | : | Yes |
| Body Material | : | CPVC |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Solvent |
| Connection Type 2 | : | Solvent |
| Lead-Free Compliant | : | Yes |
| Length | : | 2.2 in |
| Maximum Working Pressure | : | 150 psi |
| NSF Specifications | : | Yes |
| Nominal Size | : | 1/2 in |
| Operating Temperature Rating | : | 180 deg F |
| Operator Type | : | Quarter Turn |
| Package Quantity | : | 100 Case |
| Shipping Weight | : | 13 lb |
| Width | : | 2.68 in |
Jomar Valve® Ball Valve, 1/2 in Nominal, 1/2 in Connection Size 1, Connection Type 1: Solvent, 1/2 in Connection Size 2, Connection Type 2: Solvent, CPVC Body, 150 psi Maximum Working Pressure, 2.2 in Length, 2.68 in Width, Quarter Turn Operator, 180 deg F Operating Temperature, NSF Specifications: Yes, ASTM Specifications: Yes, Lead-Free Compliant: Yes
- Standard CTS
- Large Port
- For Hot/Cold Water Systems
- Quarter-Turn Operation
- Easy Installation
- Wetted Surfaces Contain Less than .25% Lead Content
