| Connection Size | : | 1/4 in |
| Function Type | : | Tool |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 3.25 in |
| Packaged Height | : | 4.5 in |
| Packaged Width | : | 2.25 in |
| Product Type | : | Tool |
| Shipping Weight | : | 0.52 lb |

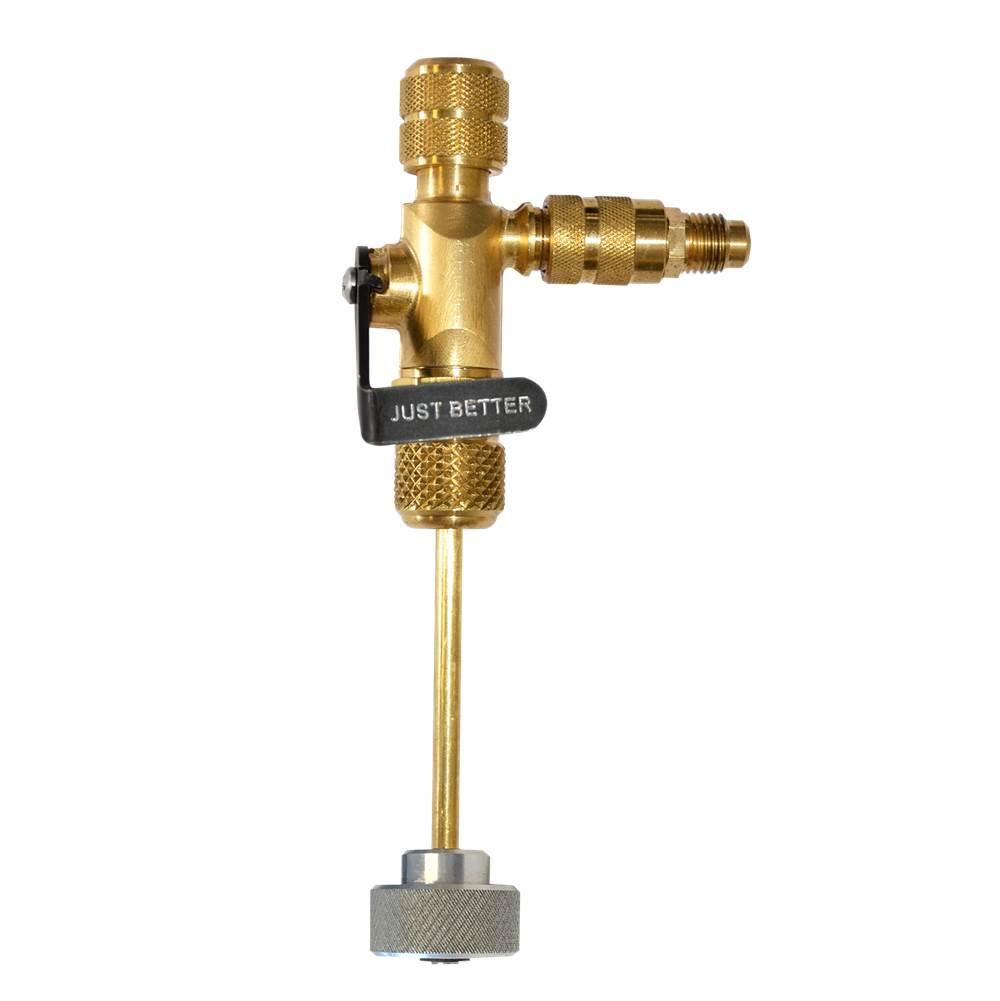

JB Industries Slide Valve Core Removal Tool, Tool, 1/4 in, 0.52 lb, 4.5 in, 2.25 in, 3.25 in, 1 Pack, Tool
- Designed with the daily job of technicians in mind-The A32525SVT valve core removal tool utilizes an additional slide valve side port to accommodate a vacuum gauge.
- Primary function is to remove and replace the valve core under pressure and/or to remove valve cores in refrigeration systems to increase evacuation and charging performance.
- Swap out damaged valve cores under pressurized air conditioning and refrigeration systems for much faster evacuation
- Slide valve side port valve provides an excellent location to attach a vacuum gauge so system can be checked for absence of moisture and air
- Slide valve side port provides an easy open/close so vacuum gauge can be removed without the introduction of air into the system before charging
- Protect sensitive vacuum gauge sensors when left on during the charging process by closing slide valve side port
- In-line actuated handle with the valve allowing the contractor to open and close the valve in tight areas with a single finger
- Uses a series of o-rings and precision machining to stay sealed and not leak during evacuation
- Solid brass construction with the tip machined from A2 tool steel extends product life
- A32525SVT automatically sets torque 3 to 5 in-lb
