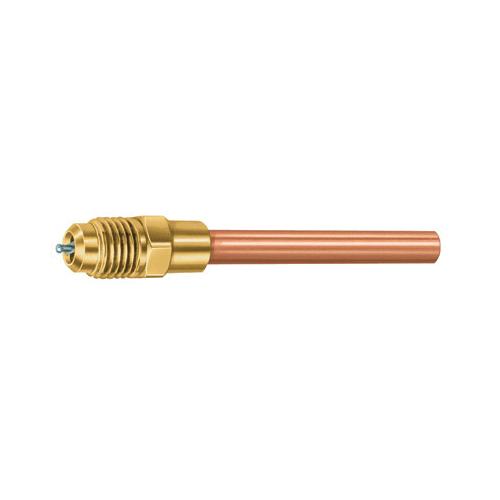

JB Industries A31008 Tube Extension, 1/2 in Connection Size 1, 1/2 in Connection Size 2, Copper, Connection Type 1: SAE
JB Industries A31008 Tube Extension, 1/2 in Connection Size 1, 1/2 in Connection Size 2, Copper, Connection Type 1: SAE
Manufacturer: JB Industries
Brand: JB Industries
Part #: 93069
MPN: A31008
CPN:
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | SAE |
| Connection Type 2 | : | Tube |
| Depth | : | 3-1/4 in |
| Length | : | 7 in |
| Material | : | Copper |
| Operating Temperature Rating | : | -40 to 250 deg F |
| Product Type | : | Extension |
| Reducing | : | No |
| Refrigerant Type | : | R-410A |
| Width | : | 1 in |
JB Industries Tube Extension, 1/2 in Connection Size 1, 1/2 in Connection Size 2, Reducing: No, Copper, Connection Type 1: SAE, Connection Type 2: Tube, R-410A Refrigerant, -40 to 250 deg F Operating Temperature, 7 in Length, 1 in Width, 3-1/4 in Depth
- For use with sil-phos alloy and copper fittings
- Includes cap (NFT5-4) and valve core, 1/4" ID
- Install through the side of the larger line to extend length approximately two inches
- Generous counter bore allows removal of core if flare becomes damaged
- All tees and crosses are tapped to receive and access core in all
- 1/4" SAE flare ends
- All pipe connections have internal braze cups for dip tube applications
