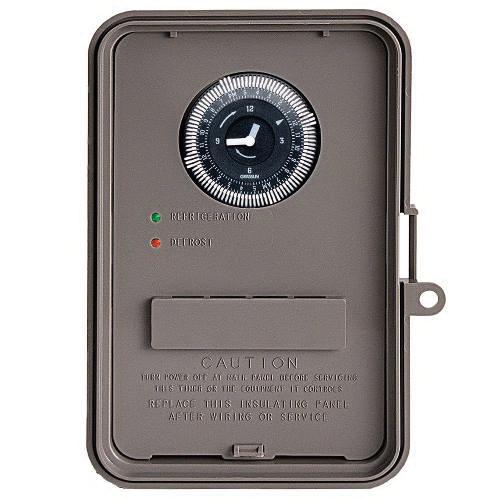

Intermatic® DTAV40 Electromechanical Defrost Timer, 120/240 V, 40 A, 60 Hz Frequency, 8.795 in Height, 6.631 in Width
Intermatic® DTAV40 Electromechanical Defrost Timer, 120/240 V, 40 A, 60 Hz Frequency, 8.795 in Height, 6.631 in Width
| Amperage Rating | : | 40 A |
| Contact Configuration | : | SPDT, 1NC SPST |
| Depth | : | 2.935 in |
| For Use With | : | Walk-In Refrigeration Cooler/Freezers |
| Frequency | : | 60 Hz |
| Function Type | : | Timer |
| Height | : | 8.795 in |
| Packaged Depth | : | 6.75 in |
| Packaged Height | : | 9.125 in |
| Packaged Width | : | 3 in |
| Product Type | : | Timer |
| Shipping Weight | : | 1.896 lb |
| Voltage Rating | : | 120/240 V |
| Width | : | 6.631 in |
For electric heat, hot gas or compressor shutdown defrost. The DTAV40 Series Auto Voltage Defrost Timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temperature or pressure switch fails to do so.
Intermatic® Electromechanical Defrost Timer, 120/240 V, 40 A, 60 Hz Frequency, 8.795 in Height, 6.631 in Width, 2.935 in Depth, For Use With: Walk-In Refrigeration Cooler/Freezers, Timer Function Type, Contact Configuration: SPDT, 1NC SPST
- Improved relay performance.
- Automatically detects and adjusts input voltages (120-240 VAC).
- Moisture resistant conformal-coated board.
- Time Initiated, Temperature, Pressure or Time Terminated.
- Captive trippers are field adjustable to 15-minute intervals.
- No tools required - snaps into alternative enclosures.
- LED indicators for defrost and refrigeration cycles.
- Defrost cycles are programmed independently.
- Real-time clock face for quick, easy and accurate setting.
