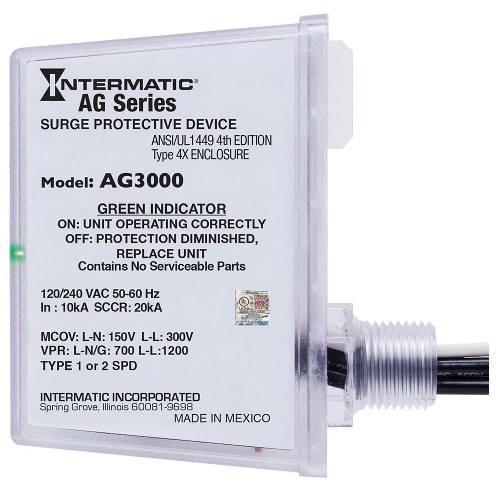

Intermatic® AG3000 Surge Protective Device, 120/240 V, 1 ph, Type 1, Type 2 Surge Protection, 1200 V Voltage Protection
Intermatic® AG3000 Surge Protective Device, 120/240 V, 1 ph, Type 1, Type 2 Surge Protection, 1200 V Voltage Protection
| Color | : | Clear |
| Dimensions | : | 3.875 in H x 1.625 in W x 4.188 in D |
| Function Type | : | Device |
| Housing Material | : | Plastic |
| NEMA Enclosure Type | : | NEMA 4X |
| Packaged Depth | : | 4.25 in |
| Packaged Height | : | 4.5 in |
| Packaged Width | : | 2 in |
| Phase | : | 1 ph |
| Product Type | : | Device |
| Shipping Weight | : | 0.65 lb |
| Short Circuit Current Rating (SCCR) | : | 100 kA |
| Surge Protection Rating | : | Type 1, Type 2 |
| Temperature Rating | : | -40 to 158 deg F |
| UL Listed | : | Yes |
| Voltage Protection Rating | : | 1200 V |
| Voltage Rating | : | 120/240 V |
| Wire Size | : | 10 AWG |
Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device (SPD) is the perfect add-on for HVAC equipment. A green LED indicator will be on when the SPD is operating correctly. A red LED indicator will be on when protection is diminished and the SPD needs to be replaced. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. UL Listed to ANSI/UL 1449, 5th Edition.
Intermatic® Surge Protective Device, 120/240 V, 1 ph Phase, Type 1, Type 2 Surge Protection, 1200 V Voltage Protection, NEMA 4X NEMA Enclosure Type, 100 kA Short Circuit Current (SCCR), 10 AWG Wire, Plastic Housing, UL Listed: Yes, Device Function Type, Clear, -40 to 158 deg F, 3.875 in H x 1.625 in W x 4.188 in D Dimensions
- Three modes of protection: L-G, L-L, L-N.
- TPMOV® surge protection technology.
- LED Indicators. Green: unit operating correctly Red: protection diminished, replace unit.
- Type 4X watertight and UV resistant plastic enclosure.
