ICM™ ICM493 Single Phase Line Monitor, 180/264 V, Contactor Output, 50/60 Hz Frequency, +/-2% Accuracy, 4.37 in Height
ICM™ ICM493 Single Phase Line Monitor, 180/264 V, Contactor Output, 50/60 Hz Frequency, +/-2% Accuracy, 4.37 in Height
| Accuracy | : | +/-2 % |
| Depth | : | 8 in |
| Frequency | : | 50/60 Hz |
| Function Type | : | Monitor |
| Height | : | 4.37 in |
| Output Rating | : | 40 A Full Load, 240 A Locked Rotor |
| Output Type | : | Contactor |
| Product Type | : | Monitor |
| Product Weight | : | 7.55 lb |
| Voltage Rating | : | 180/264 V |
| Width | : | 8-1/4 in |

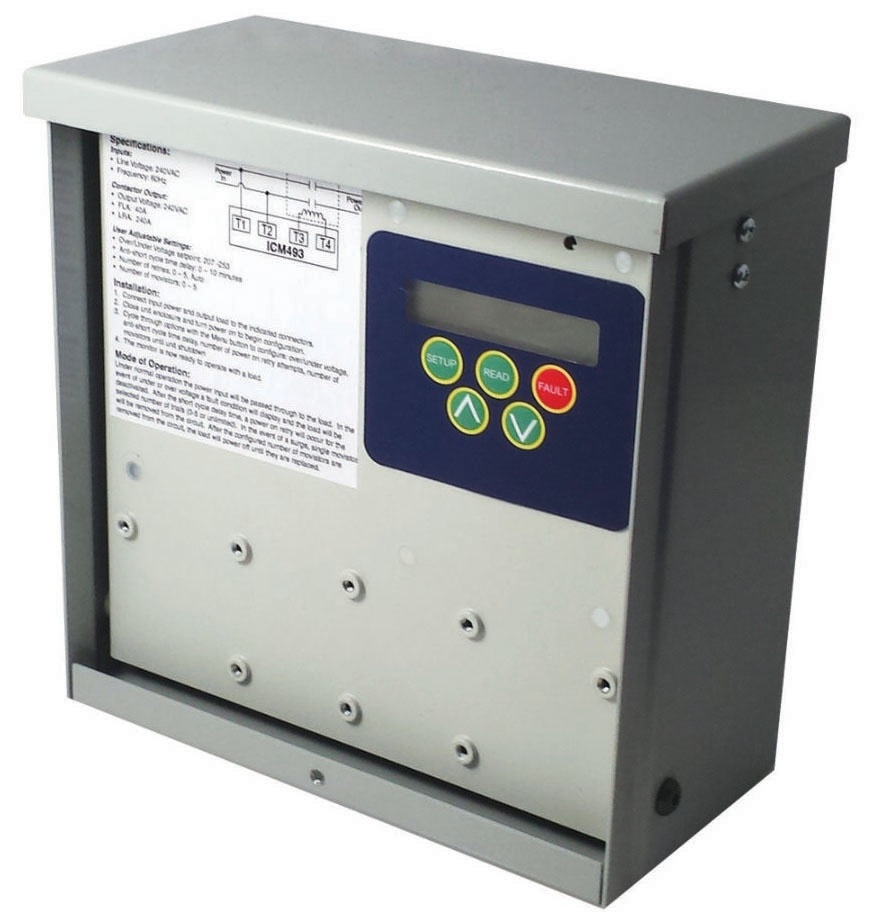

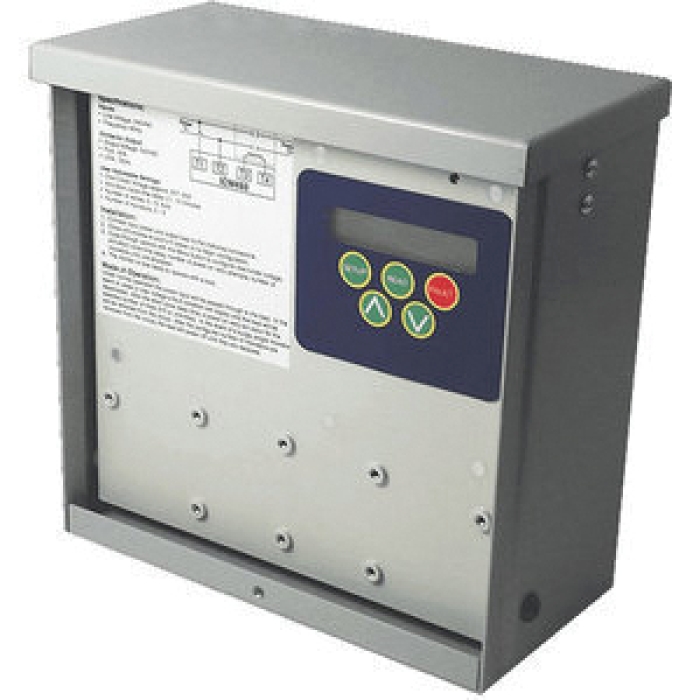

The ICM493 is an advanced, single-phase line voltage monitor with a bank of surge arresters for added protection against brownouts, lightning strikes, power outages & recoveries, startup of larger equipment, power grid faults, short circuits and more. Includes a built-in 40A contactor. Housed in a NEMA Rated 3R enclosure for outdoor installations. UL Listed. Installs easily between the service disconnect and the condensing unit. Ideal for Mini-Splits or other valuable, single-phase equipment.
ICM™ Single Phase Line Monitor, 180/264 V, Contactor Output, 50/60 Hz Frequency, 40 A Full Load, 240 A Locked Rotor Output Rating, +/-2 % Accuracy, 4.37 in Height, 8-1/4 in Width, 8 in Depth, Monitor Function Type
- Protects against over and under voltage, rapid short cycling caused by transients, and high-power surges
- Fault history feature records and retains the five most recently occurred faults in non-volatile memory
- Ideal for mini-splits or other condensing units
- Easy to view, backlit digital display
- Bank of five L-L surge arresters
- Built-in 40A contactor
- NEMA Type 3R rated metal enclosure for outdoor use
- Easy installation and setup
