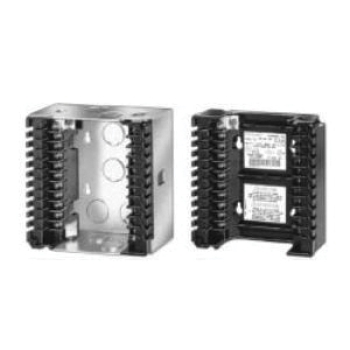

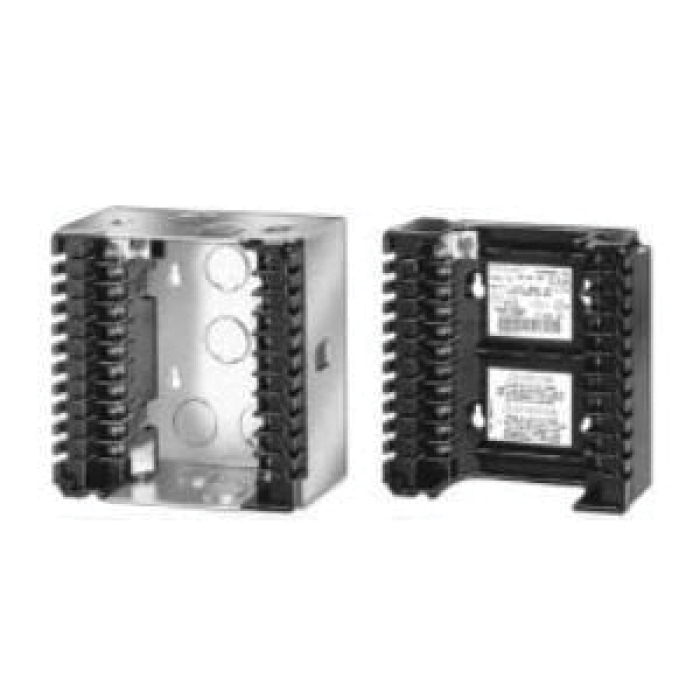

Honeywell Q7800A1005/U Universal Wiring Subbase, NEMA 1 NEMA Enclosure Type, 4-31/32 in Length, 1-13/32 in Depth
Honeywell Q7800A1005/U Universal Wiring Subbase, NEMA 1 NEMA Enclosure Type, 4-31/32 in Length, 1-13/32 in Depth
Manufacturer: Honeywell International Inc
Brand: Honeywell
Part #: 66186
MPN: Q7800A1005/U
CPN:
| Depth | : | 1-13/32 in |
| Function Type | : | Subbase |
| Length | : | 4-31/32 in |
| NEMA Enclosure Type | : | NEMA 1 |
| Product Family | : | 7800 Series |
| Product Type | : | Subbase |
| Product Weight | : | 7 oz |
| UL Listed | : | Yes |
| Width | : | 4-31/32 in |
The universal wiring subbase provides terminals for field wiring. Knife blade terminals located on the 7800 SERIES Relay Module or S7830A engage the Q7800 bifurcated contacts to make electrical connections. The Q7800A1005 (2-sided) subbase is available for panel mounting applications. The Q7800B1003 and Q7800B1011 (4-sided) subbases are available for burner or wall mount applications. Knockouts are provided in the back, top and bottom for conduit connections.
Honeywell Universal Wiring Subbase, NEMA 1 NEMA Enclosure Type, 4-31/32 in Length, 1-13/32 in Depth, 4-31/32 in Width, Yes, 7800 Series, Subbase Function Type
- Quick-mount wiring subbase for all 7800 SERIES Relay Modules and S7830 Expanded Annunciator
- Allows wiring of control system before installation of relay module
- Can be panel mounted (Q7800A) or burner or wall mounted (Q7800B)
- Access slots provided for electrical measurement
- NEMA 1 enclosure
- Electrical access slot covers provided with Q7800B, available as an option for Q7800A
